Transmission - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma
WARNING: This page is about a different variant/trim than selected.
Special Tool(s) / General Equipment
| 303-1554Engine Support Bar | |
|---|---|
| 303-1554-05Adapter for 303-1554, Engine Support Bar | |
| Transmission Jack | |
| Cable Ties | |
| Retaining Strap | |
| Wooden Block |
- 8.
Refer to: Jacking and Lifting - Overview .
Refer to: Front Halfshaft RH . Refer to: Front Halfshaft LH .
- 16.
Install the following items:-
NOTE: Make sure that the exhaust flexible pipe is not forcibly bent.
Use the General Equipment: Cable Ties
-
- 20.

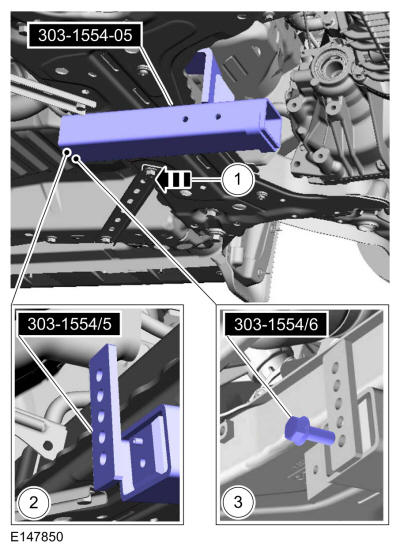

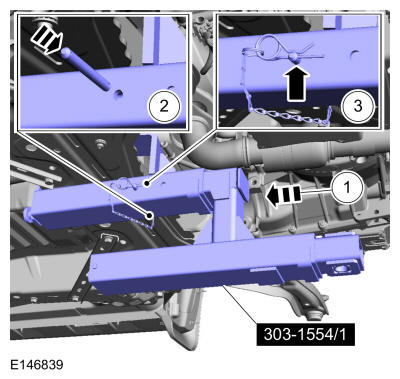

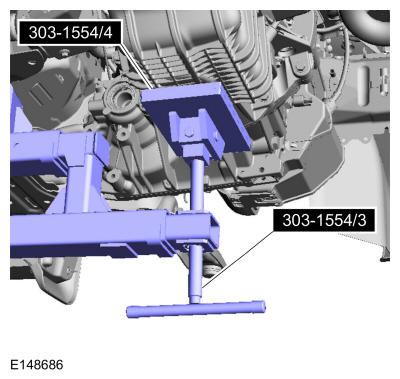

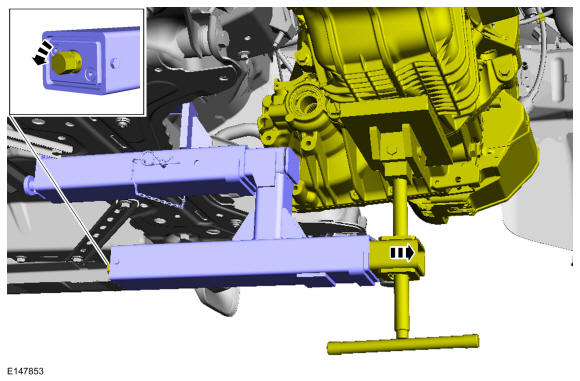

Install Special Service Tool: 303-1554 Engine Support Bar., 303-1554-05 Adapter for 303-1554, Engine Support Bar.Torque: 27 lb.ft (36 Nm)
- 28.

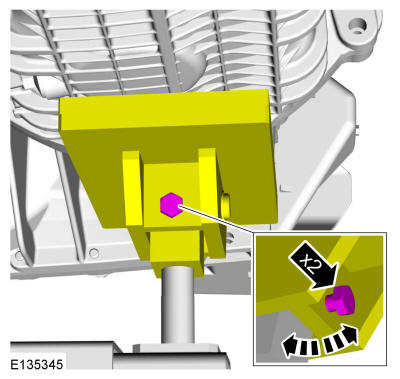

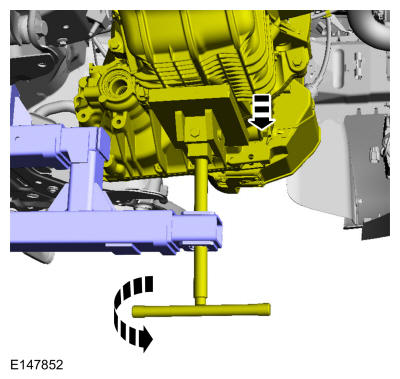

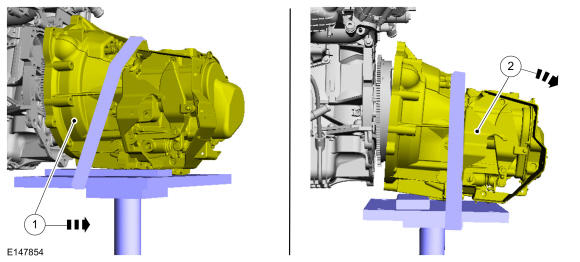

Use the General Equipment: Transmission JackUse the General Equipment: Wooden BlockUse the General Equipment: Retaining Strap
