Selector Plate: Disassembly

WARNING: This page is about a different variant/trim than selected.

1.

Remove the selector plate bolts.

GFD140602

Courtesy of FORD MOTOR COMPANY

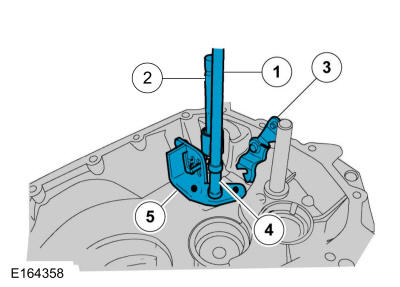

2.

Remove the selector mechanism.
- Fifth and reverse gear selector rod.
- Selector shift shaft.
- Reverse gear selector lever.
- Fifth and reverse gear selector rod guide sleeve.
- Selector plate.

GFD140603

Courtesy of FORD MOTOR COMPANY
