Selector Plate: Assembly

WARNING: This page is about a different variant/trim than selected.

1.

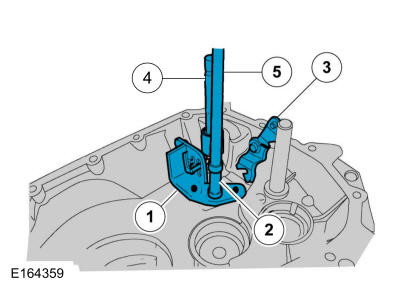

Install the selector mechanism.
- Selector plate.
- Fifth and reverse gear selector rod guide sleeve.
- Reverse gear selector lever.
- Selector shift shaft.
- Fifth and reverse gear selector rod.

GFD140604

Courtesy of FORD MOTOR COMPANY

2.

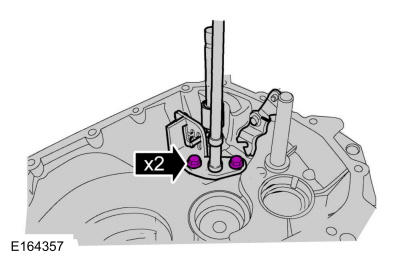

Install the selector plate bolts.
Torque: 16 lb.ft (22 Nm)

GFD140602

Courtesy of FORD MOTOR COMPANY
