Output Shaft: Assembly
WARNING: This page is about a different variant/trim than selected.

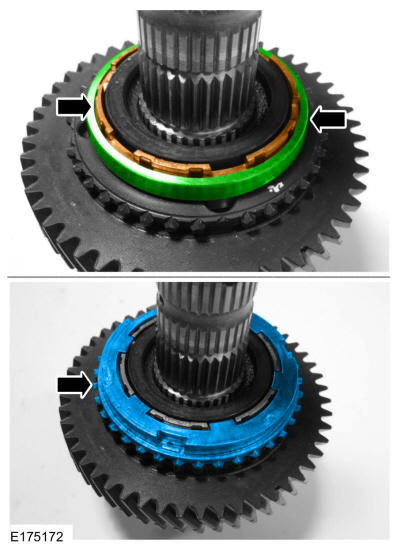

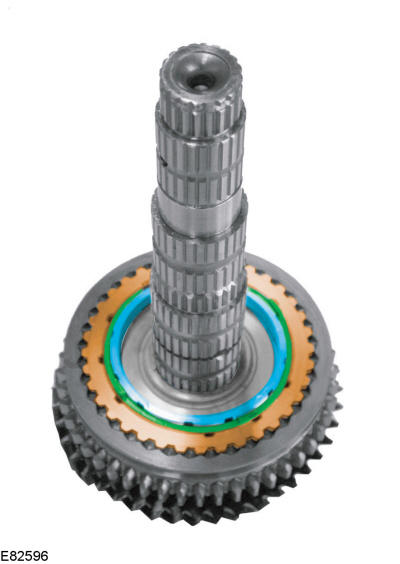

- 3.NOTE: Be sure the middle indented splines in the selector ring align with the 3 synchronizer locks or the selector ring will rest on the shift fork causing excessive wear.NOTE: Make sure that these components are installed to the noted removal position.

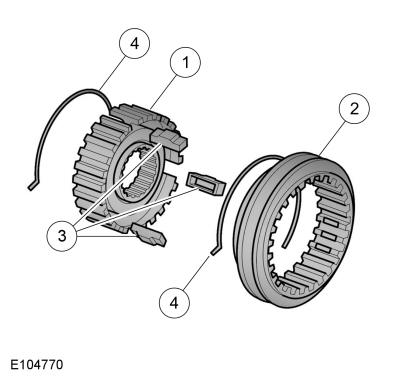

- 1.
Synchronizer hub
- 2.
Selector ring
- 3.
Synchronizer lock
- 4.
Synchronizer spring
- 1.

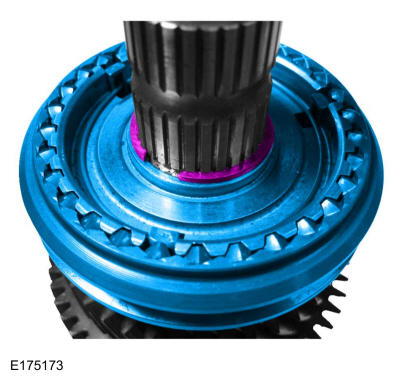

- 4.NOTE: Make sure that a new component is installed.

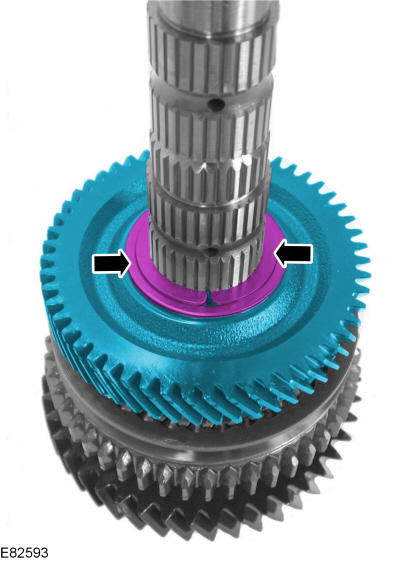

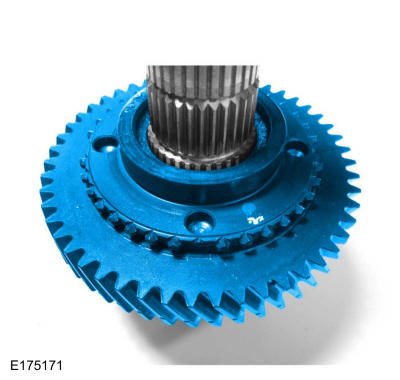

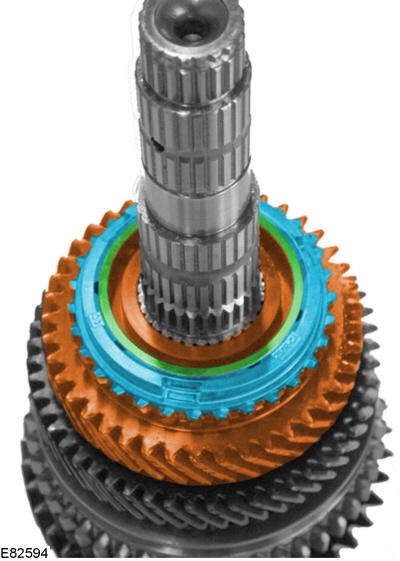

Install the 1st and 2nd gear synchronizer assembly.
- 8.NOTE: Be sure the middle indented splines in the selector ring align with the 3 synchronizer locks or the selector ring will rest on the shift fork causing excessive wear.NOTE: Make sure that these components are installed to the noted removal position.

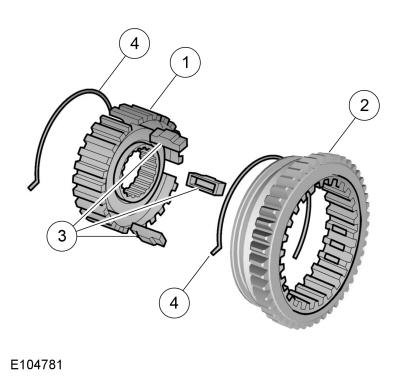

- 1.
Synchronizer hub
- 2.
Selector ring
- 3.
Synchronizer lock
- 4.
Synchronizer spring
- 1.

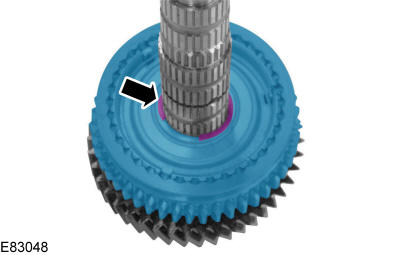

- 9.NOTE: Make sure that a new retaining ring is installed.

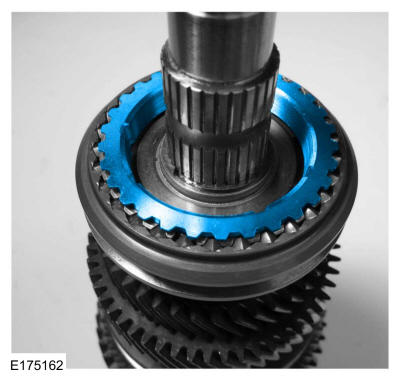

Install the 3rd and 4th gear synchronizer assembly.

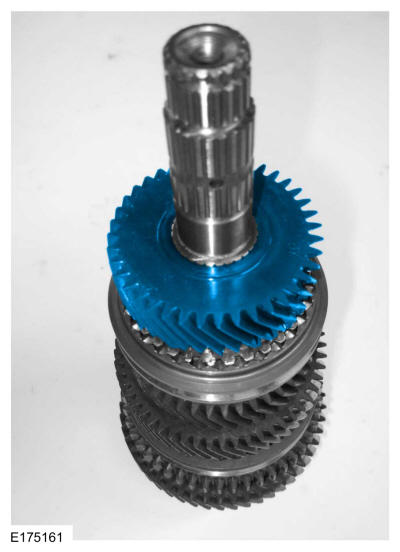

- 12.

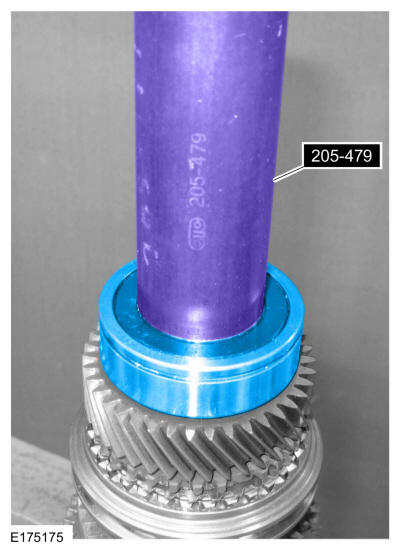

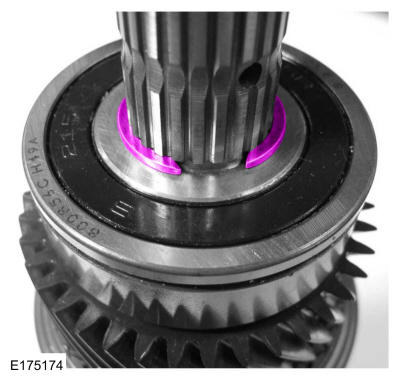

Install the bearing. Use Special Service Tool: 205-479 Installer, Drive Pinion Flange. Use the General Equipment: Hydraulic Press
