Input Shaft: Disassembly
WARNING: This page is about a different variant/trim than selected.
- 1.

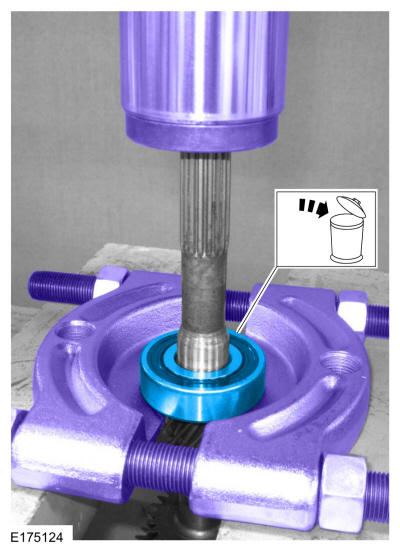

Remove and discard the bearing. Use the General Equipment: Bearing SeparatorUse the General Equipment: Hydraulic Press
 Courtesy of FORD MOTOR COMPANY
|
- 2.

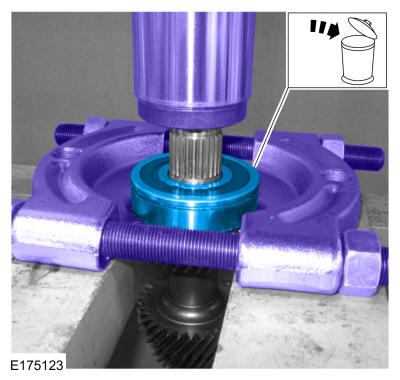

Remove and discard the bearing. Use the General Equipment: Bearing SeparatorUse the General Equipment: Hydraulic Press
 Courtesy of FORD MOTOR COMPANY
|
