Disassembly And Assembly Of Subassemblies: Differential: Disassembly
WARNING: This page is about a different variant/trim than selected.
- 1.

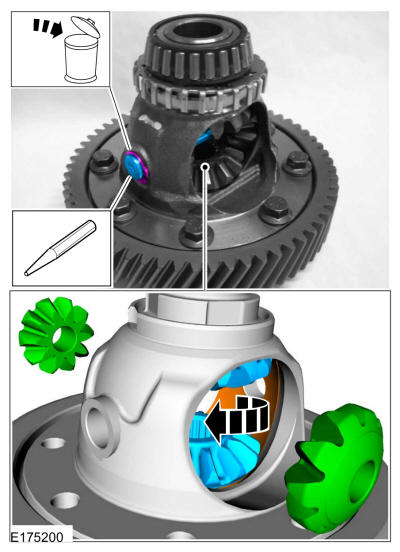

Remove the differential pinions.- Remove and discard the differential pinion shaft snap ring.
- Remove the differential pinion shaft.
- Rotate and remove the differential pinion gears.
- Rotate and remove the differential pinion gears.

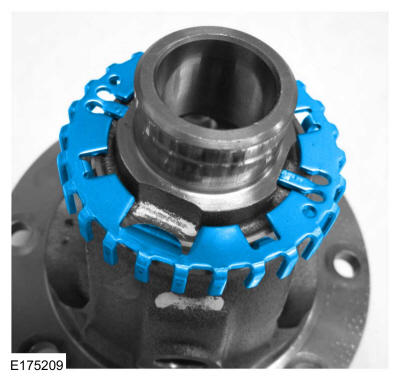

- Remove the differential pinion gear case lining.
- 3.

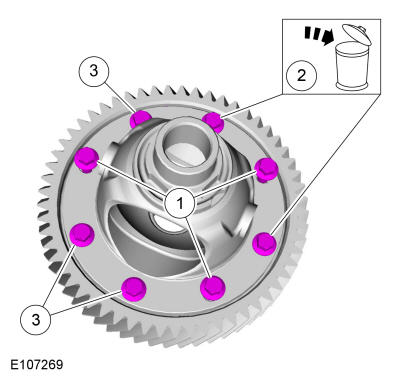

Remove the differential ring gear bolts as follows:- Loosen the 3 differential bolts four turns.
- Remove and discard the 2 differential bolts.
- Remove and save the 3 differential bolts.
- 4.

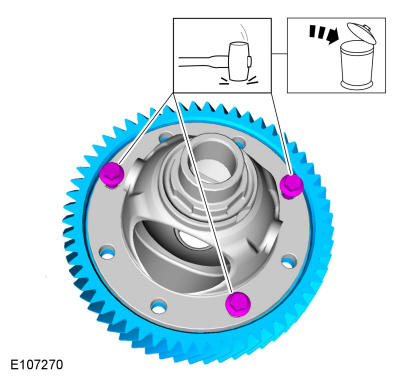

Using a hammer, lightly tap the 3 remaining differential bolts, remove and discard the differential bolts and remove the differential ring gear.
- 5.

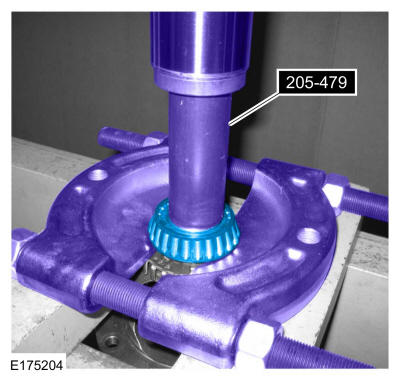

Remove the bearing. Use Special Service Tool: 205-479 Installer, Drive Pinion Flange. Use the General Equipment: Bearing SeparatorUse the General Equipment: Hydraulic Press
- 6.

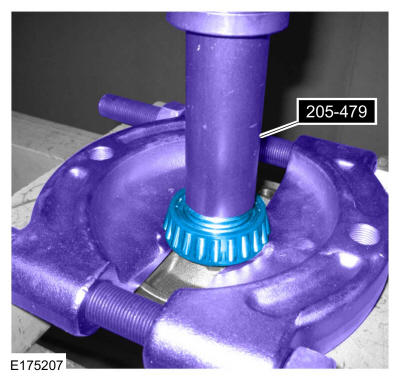

Remove the bearing. Use Special Service Tool: 205-479 Installer, Drive Pinion Flange. Use the General Equipment: Bearing SeparatorUse the General Equipment: Hydraulic Press
