Shift Movement
WARNING: This page is about a different variant/trim than selected.

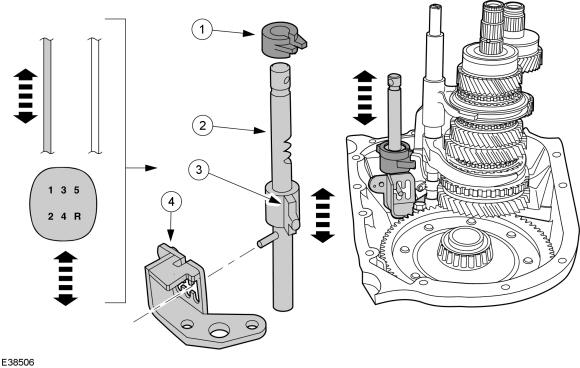

| Item | Description |
|---|---|
| 1 | Shift locking bush |
| 2 | Selector shaft |
| 3 | Selector finger |
| 4 | Selector gate |
After the gear pair to be shifted has been selected, the shift movement takes place.
Here the axial movement of the shift cable at the transmission produces an axial movement of the selector shaft.
If the gearshift lever is moved forwards or backwards, the selector shaft and the selector boss both move vertically together.
As this happens, the selector shaft is guided by a pin in the selector gate.
The selector boss shifts the required selector fork.
At the same time the shift locking bush prevents access to other gear combinations.
