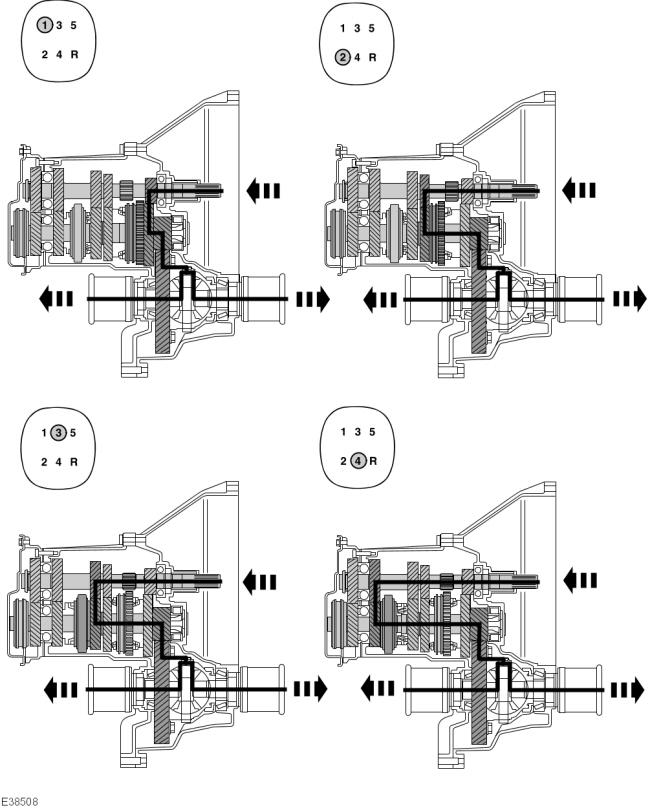

Power Transmission Route In 1st To 4th Gears

WARNING: This page is about a different variant/trim than selected.
GFD140503Courtesy of FORD MOTOR COMPANY

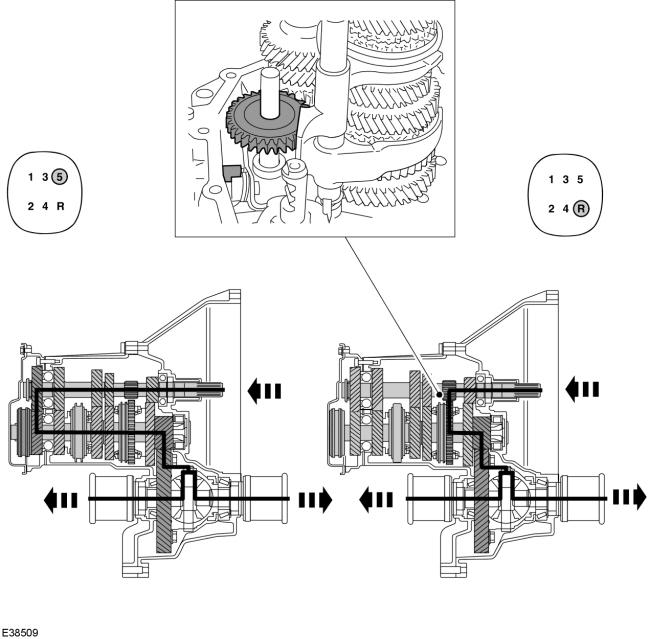

Power Transmission Route In 5th And Reverse Gears

GFD140504Courtesy of FORD MOTOR COMPANY
