Internal Shift Mechanism
WARNING: This page is about a different variant/trim than selected.

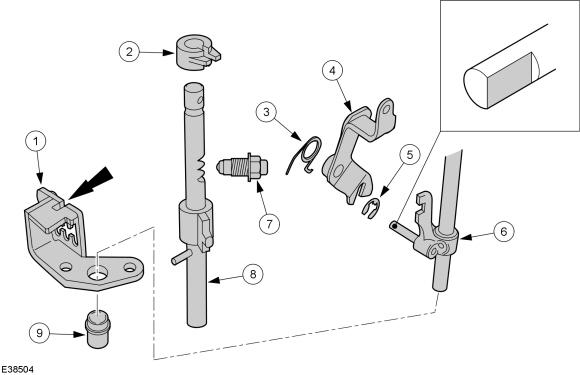

Layout
| Item | Description |
|---|---|
| 1 | Selector gate |
| 2 | Shift locking bush |
| 3 | Return spring from reverse gear position |
| 4 | Reverse gear selector shaft |
| 5 | Snap ring |
| 6 | Shift rod - 5th gear/reverse gear |
| 7 | Selector Interlock Mechanism |
| 8 | Selector shaft |
| 9 | Guide sleeve |
The shift locking bush prevents two gears from being engaged at the same time.
The selector interlock maintains engagement of the selected gear.
Both the shift and the select process is performed through the selector shaft.
