Input Shaft
WARNING: This page is about a different variant/trim than selected.

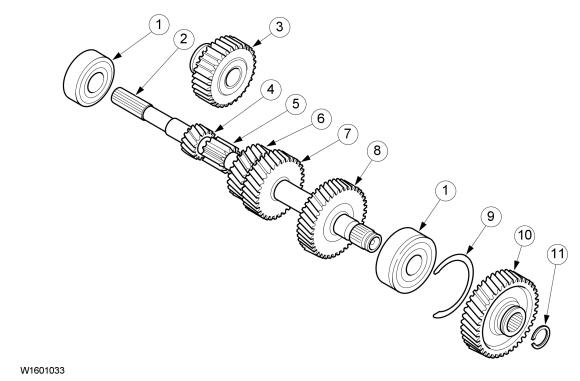

| Item | Description |
|---|---|
| 1 | Ball bearing |
| 2 | Input Shaft |
| 3 | Reverse gear idler |
| 4 | 1st gear |
| 5 | Reverse gear |
| 6 | 2nd gear |
| 7 | 3rd gear |
| 8 | 4th gear |
| 9 | Snap ring |
| 10 | 5th gear |
| 11 | Snap ring |
The gears are located on the input shaft:
- 1st to 4th gear as well as the reverse gear as an integral part of the shaft.
- The gear for the 5th gear is pressed onto the end of the input shaft and is located behind a separate housing cover.
