Dual Synchronizer
WARNING: This page is about a different variant/trim than selected.

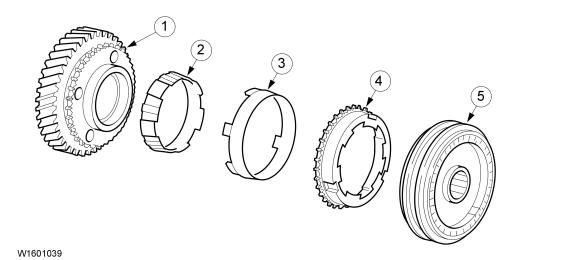

| Item | Description |
|---|---|
| 1 | Gear |
| 2 | Inner synchronizer ring |
| 3 | Conical ring |
| 4 | Outer synchronizer ring |
| 5 | Synchronizer hub |
1st and 2nd gears are dual synchronized.
The effective synchronization surface for dual synchronizer is almost twice that of single synchronizer. Because of this, the speeds of the gearwheels are equalized much faster, which considerably improves shifting comfort.
