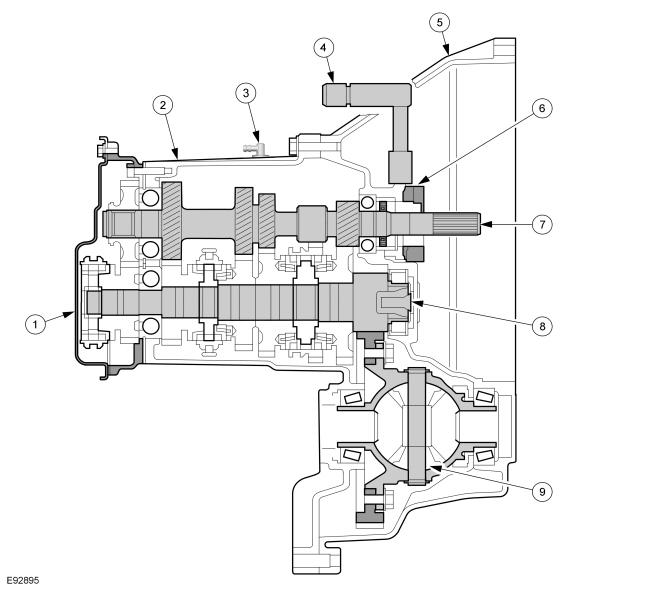

Transmission construction
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
5th gear cover |
| 2 |
Transmission case |
| 3 |
Vent |
| 4 |
Hydraulic clutch connection |
| 5 |
Clutch housing |
| 6 |
Slave cylinder with integral release bearing |
| 7 |
Input Shaft |
| 8 |
Output shaft |
| 9 |
Differential assembly |
