Removal And Installation: Turbocharger: Installation

Install and tighten the turbocharger mounting studs.

Torque: 89 lb.in (10 Nm)

Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

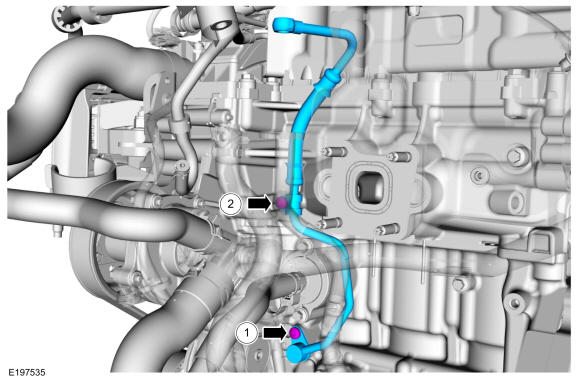

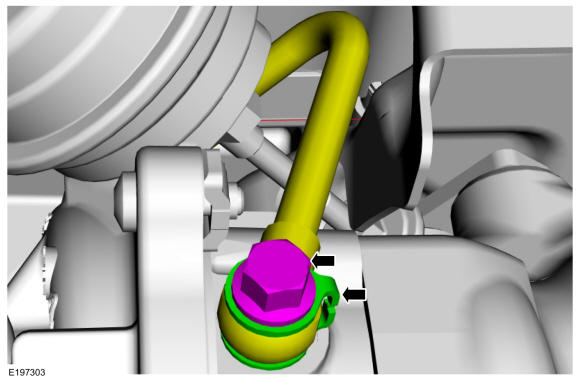

Install the new turbocharger oil supply tube and the turbocharger oil supply tube bolts finger tight.

• 1.

  Tighten the turbocharger oil supply tube bolt.

  Torque: 89 lb.in (10 Nm)

• 2.

  Tighten the turbocharger oil supply tube bolt.

  Torque: 89 lb.in (10 Nm)

Install the new the turbocharger heat shield and gasket assembly, then install and tighten the turbocharger heat shield and gasket assembly bolt.

Torque: 89 lb.in (10 Nm)

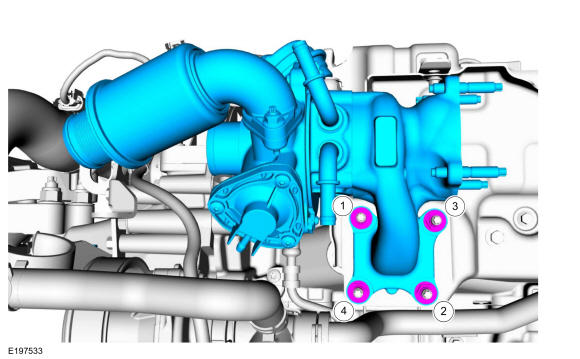

Install the turbocharger and the new turbocharger nuts. Tighten in the following 5 stages.

Torque:

1-4:

Stage 1: Tighten in the sequence shown: : 35 lb.in (4 Nm)

Stage 2: Tighten in the sequence shown: : 168 lb.in (19 Nm)

Stage 3: Tighten in the sequence shown: : 18 lb.ft (24 Nm)

Stage 4: Wait 30 s

Stage 5: Tighten in the sequence shown: : 18 lb.ft (24 Nm)

Torque: 19 lb.ft (26 Nm)

Install the new turbocharger oil return tube gasket.

Torque: 89 lb.in (10 Nm)

• 1.

  Connect the turbocharger coolant tubes to the turbocharger. Use the General Equipment: Hose Clamp Remover/Installer

• 2.

  Unclamp the turbocharger coolant tubes.Remove the General Equipment: Hose Clamp(s)

Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
