Thermostat Housing: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

  1. 2.

    Loosen the clamps and remove the air cleaner outlet pipe.
GFD139688Courtesy of FORD MOTOR COMPANY

  1. 3.

    WARNING: Be prepared to collect escaping fluid.

    Remove the wiring harness retainers. Release the hose clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

GFD138801Courtesy of FORD MOTOR COMPANY

  1. 4.

    WARNING: Be prepared to collect escaping fluid.

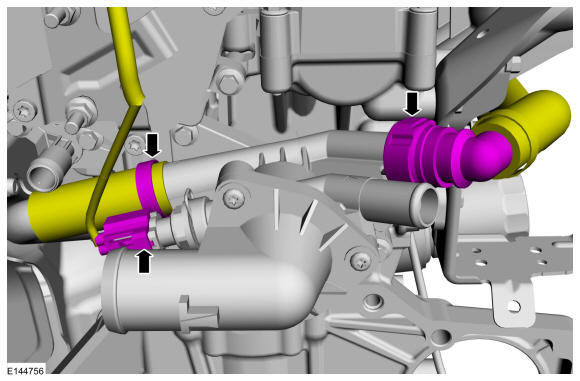

    • Disconnect the electrical connector.
    • Release the hose clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    • Depress the tabs and disconnect the coolant hose quick disconnect fitting.
GFD139689Courtesy of FORD MOTOR COMPANY

  1. 5.

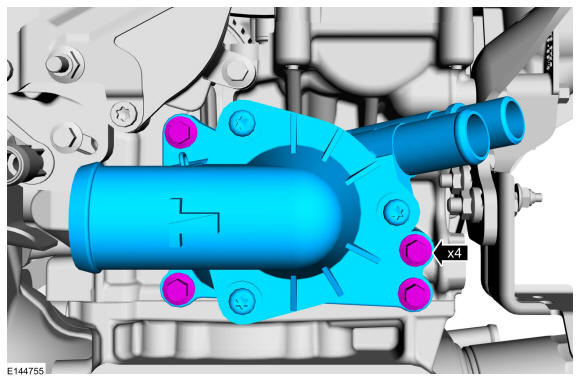

    Remove the bolts and the thermostat housing.

    Torque: 89 lb.in (10 Nm)

GFD139690Courtesy of FORD MOTOR COMPANY

  1. 6.

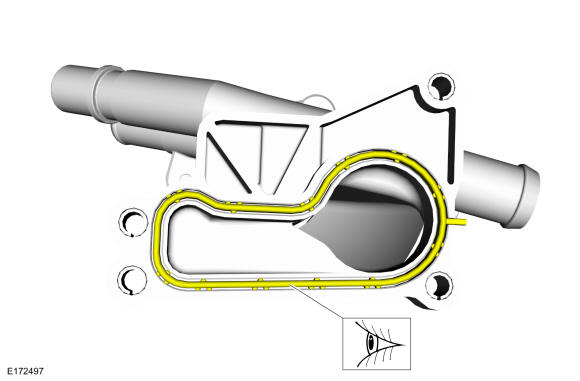

    Inspect the thermostat housing O-ring and replace if necessary.
GFD139691Courtesy of FORD MOTOR COMPANY
