Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

  1. 3.

    Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

  1. 4.

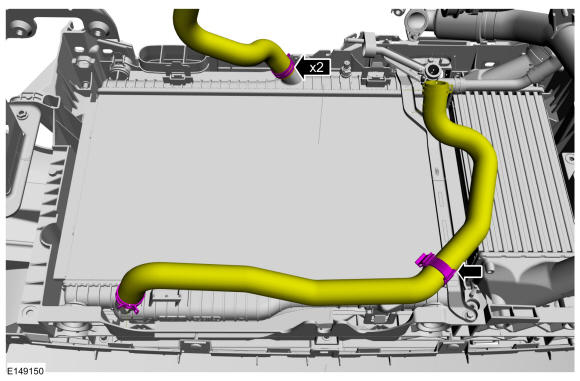

    Disconnect the upper and lower radiator hoses. Use the General Equipment: Hose Clamp Remover/Installer
GFD139677Courtesy of FORD MOTOR COMPANY

  1. 5.

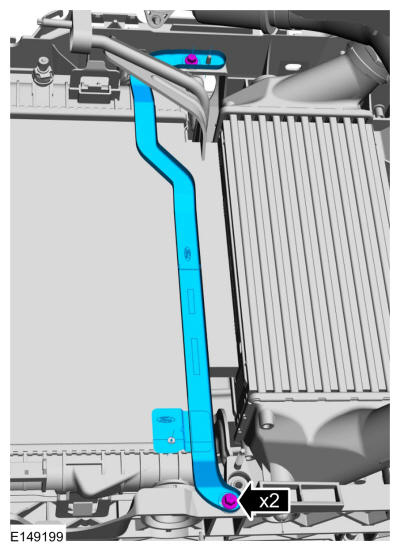

    Remove the bolts and the support bracket.

    Torque: 89 lb.in (10 Nm)

GFD139678Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove both headlamps. Refer to: Headlamp Assembly .

  1. 7.

    Remove the front bumper cover. Refer to: Front Bumper Cover .

  1. 8.

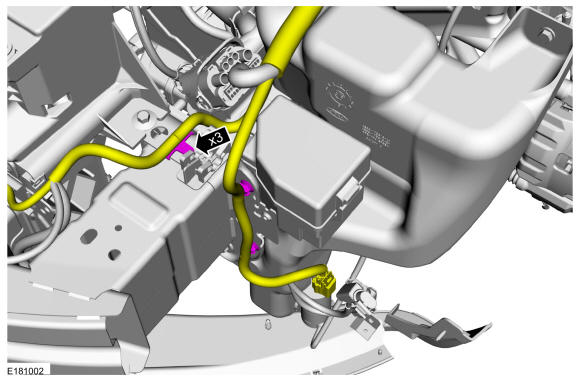

    Remove the push pins.
GFD139679Courtesy of FORD MOTOR COMPANY

  1. 9.

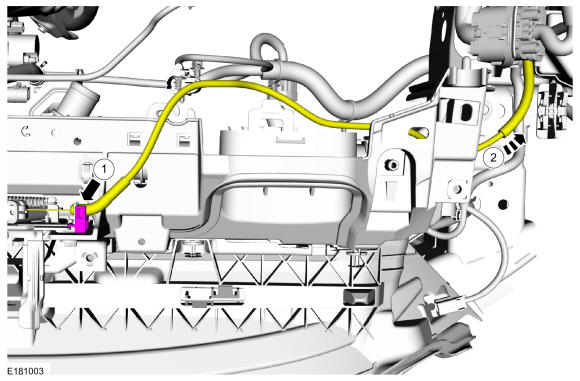

    Disconnect the hood release cable and position it aside.
GFD139680Courtesy of FORD MOTOR COMPANY

  1. 10.

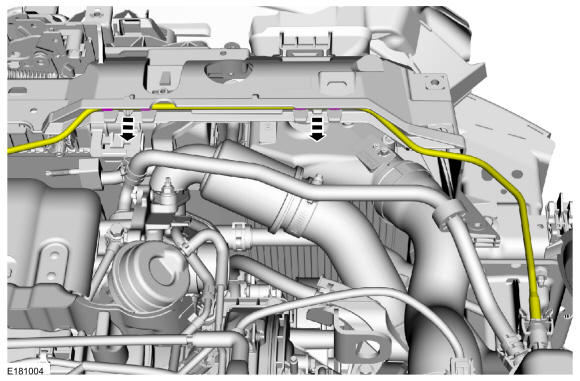

    Unclip the degas bottle hose and position it aside.
GFD139681Courtesy of FORD MOTOR COMPANY

  1. 11.

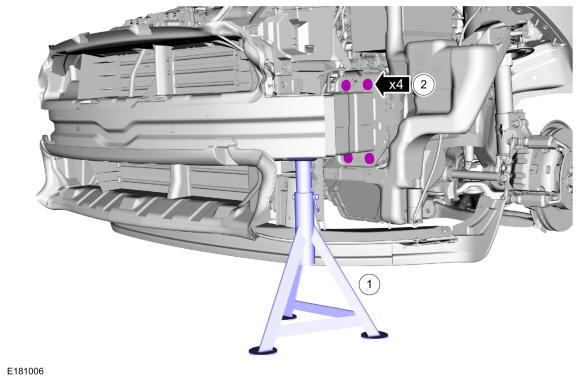

    1. 1.

      Position a safety stand under the front bumper. Use the General Equipment: Vehicle/Axle Stands

    1. 2.

      Remove the bolts.

      Torque: 18 lb.ft (25 Nm)

GFD139682Courtesy of FORD MOTOR COMPANY

  1. 12.

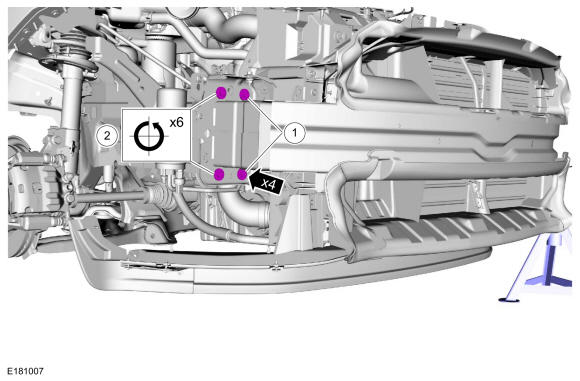

    1. 1.

      Remove the bolts.

      Torque: 18 lb.ft (25 Nm)

    1. 2.

      Loosen the bolts 6 turns.

      Torque: 18 lb.ft (25 Nm)

GFD139683Courtesy of FORD MOTOR COMPANY

  1. 13.

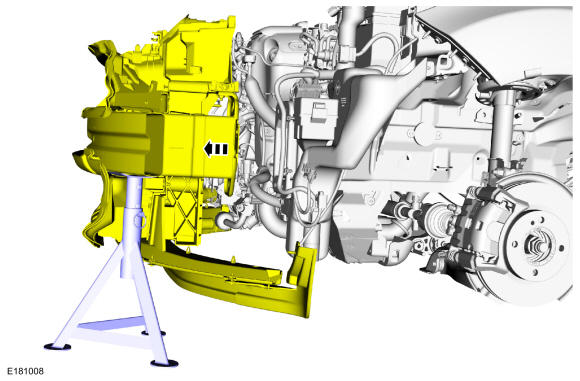

    NOTE: Use caution not to damage the wiring harness.

    Position the front structure forward.

GFD139684Courtesy of FORD MOTOR COMPANY

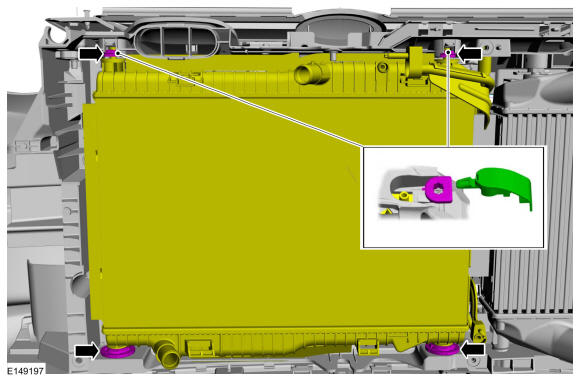

  1. 14.

    NOTE: The component must be removed by hand, the use of tools is prohibited.
GFD139685Courtesy of FORD MOTOR COMPANY

  1. 15.

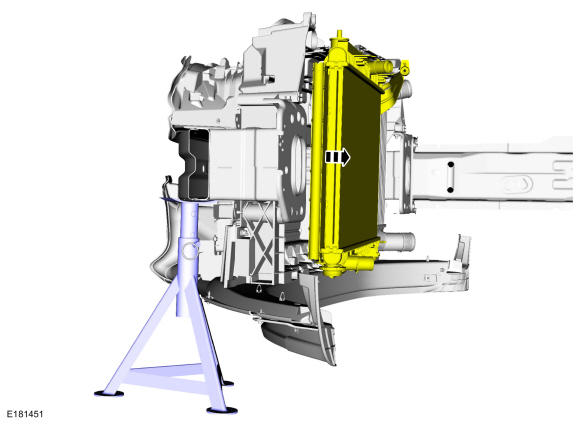

    Position the cooling module from the front structure.
GFD139686Courtesy of FORD MOTOR COMPANY

  1. 16.

    NOTE: Use caution not to over extend the lower radiator tabs.

    Unclip the lower tabs and lift the radiator upward while pressing down on the A/C condenser.

GFD139687Courtesy of FORD MOTOR COMPANY
