Electric Coolant Pump: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

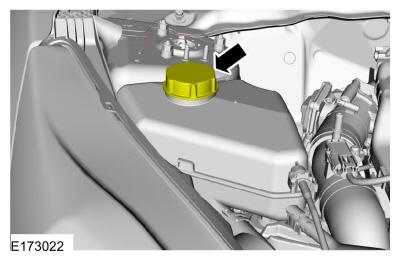

NOTE: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

Loosen the pressure relief cap.

Torque: 2turn(s)

GFD139695

Courtesy of FORD MOTOR COMPANY

3.

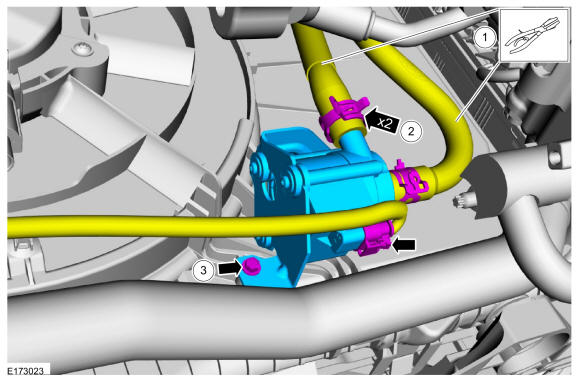

1. 1.

  Using general tools, clamp the coolant hoses. Disconnect the electrical connector. Use the General Equipment: Hose Clamp(s)
1. 2.

  Release the hose clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
1. 3.

  Remove the bolt and the electric coolant pump.
  Torque: 53 lb.in (6 Nm)

GFD139696

Courtesy of FORD MOTOR COMPANY
