Degas Bottle: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

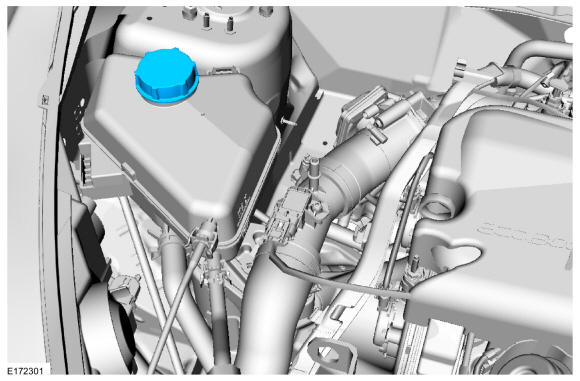

- 1.WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Release the cooling system pressure by slowly turning the coolant expansion tank cap between 2 and 3 turns.
- 2.

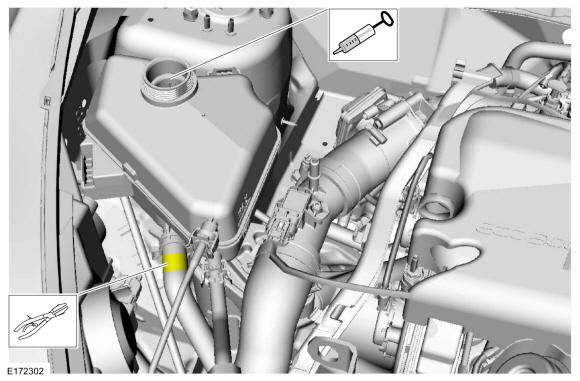

Using general tools clamp the lower degas bottle hose and syphon the engine coolant from the degas bottle. Use the General Equipment: Fluid Suction Gun Use the General Equipment: Locking Pliers
- 3.

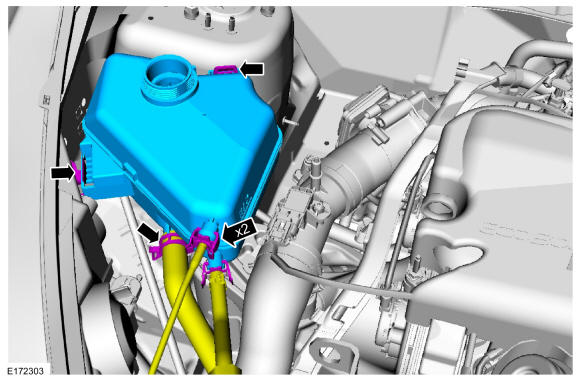

- Depress the tabs and disconnect the upper coolant tubes.
- Release the clamp and disconnect the lower coolant hose.
- Release the tabs and remove the degas bottle.
