Cylinder Block Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the generator. Refer to: Generator - 1.0L EcoBoost (90kW/120PS) .

2.

Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

3.

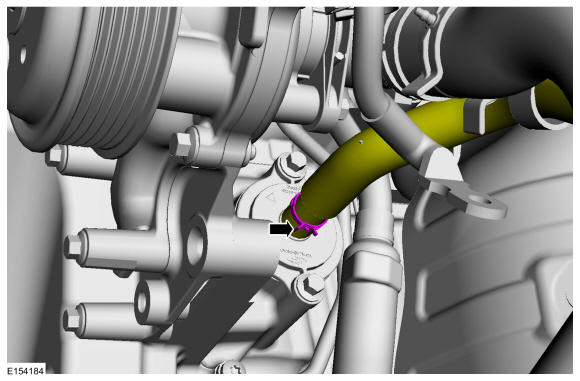

Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

GFD139675

Courtesy of FORD MOTOR COMPANY

4.

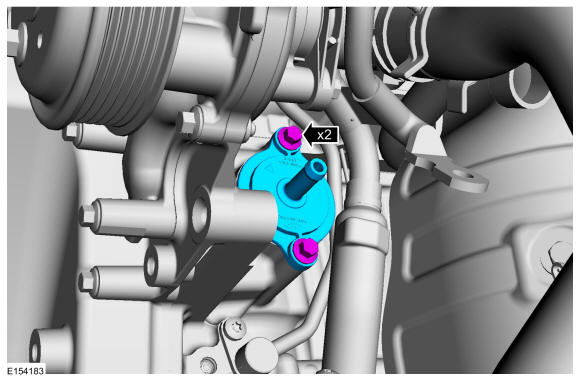

Remove the bolts and the cylinder block thermostat.
Torque: 89 lb.in (10 Nm)

GFD139676

Courtesy of FORD MOTOR COMPANY
