Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the air cleaner. Refer to: Air Cleaner
.
- 2.

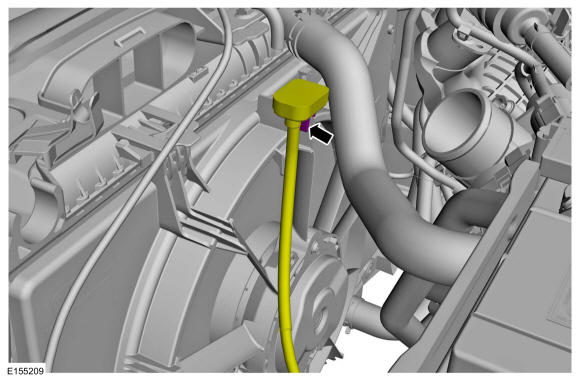

If equipped. Detach the transmission vent hose.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

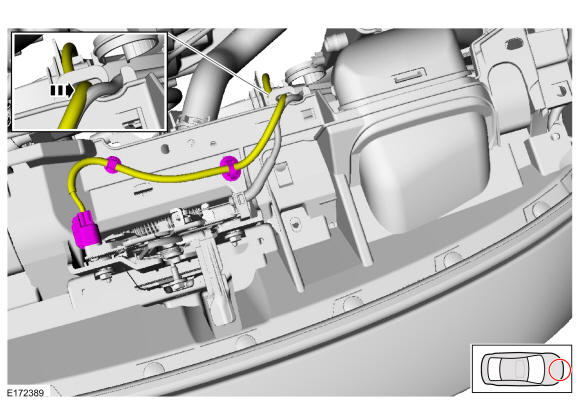

Detach the wire harness retainers and disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

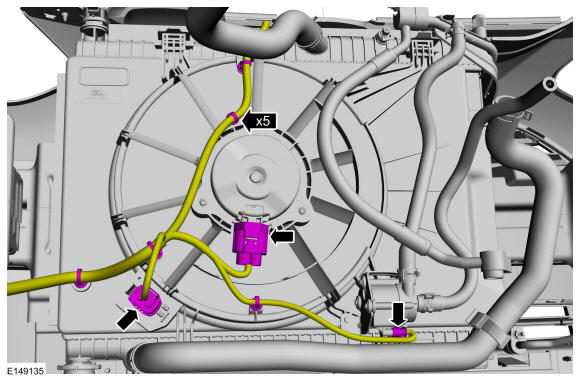

Disconnect the electrical connectors and detach the wire harness retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

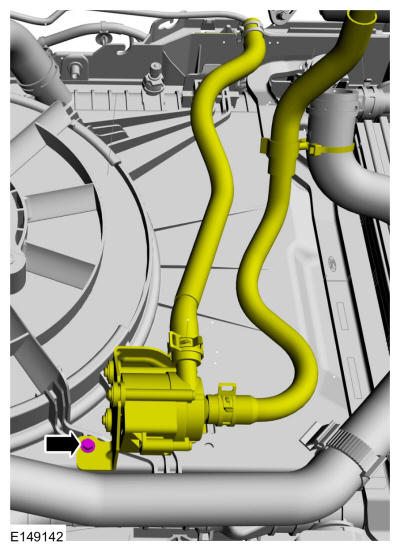

Remove the bolt and position the electric coolant pump aside.Torque: 53 lb.in (6 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 6.

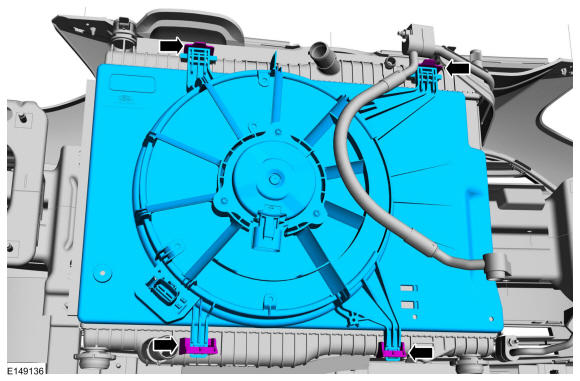

Release the tabs and remove the cooling fan motor and shroud.
 Courtesy of FORD MOTOR COMPANY
|
