Coolant Pump: Removal

WARNING: This page is about a different variant/trim than selected.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

  1. 3.

    If equipped with FEAD shield.
    • Disconnect the vent tube.
    • Loosen the clamps and remove the turbocharger inlet tube.

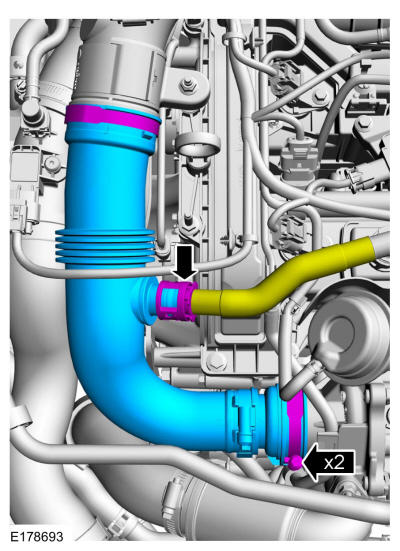

GFD139662Courtesy of FORD MOTOR COMPANY

  1. 4.

    1. 1.

      If equipped with FEAD shield. Remove the bolt and the support bracket. Loosen the clamp and disconnect the CAC tube.

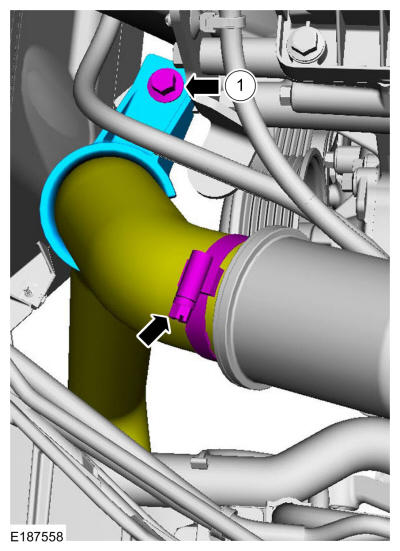

GFD139663Courtesy of FORD MOTOR COMPANY

  1. 5.

    If equipped. Remove the bolts and the accessory drive shield.
GFD138842Courtesy of FORD MOTOR COMPANY

  1. 6.

    Loosen the coolant pump pulley bolts. Loosen: 2 turn(s)

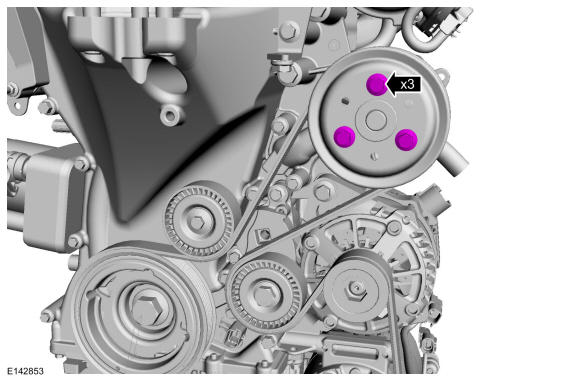

GFD139664Courtesy of FORD MOTOR COMPANY

  1. 7.

    Remove the accessory drive belt. Refer to: Accessory Drive Belt .

  1. 8.

    Remove the bolts and the coolant pump pulley.

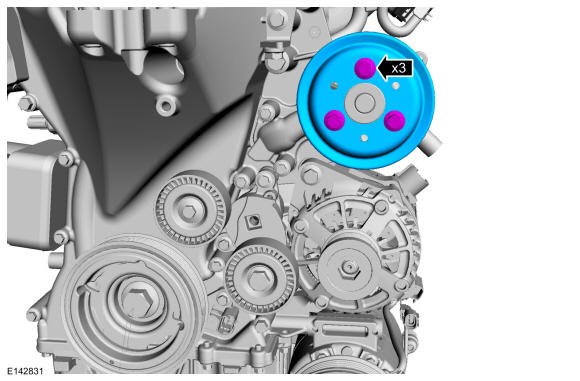

GFD139665Courtesy of FORD MOTOR COMPANY

  1. 9.

    • Remove the bolts and the coolant pump bracket.
    • Remove the bolts and the coolant pump.

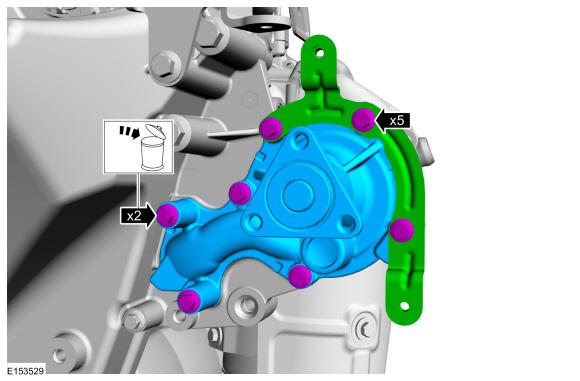

GFD139666Courtesy of FORD MOTOR COMPANY
