Coolant Pump: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the gasket surfaces are clean, free of foreign material and coolant.

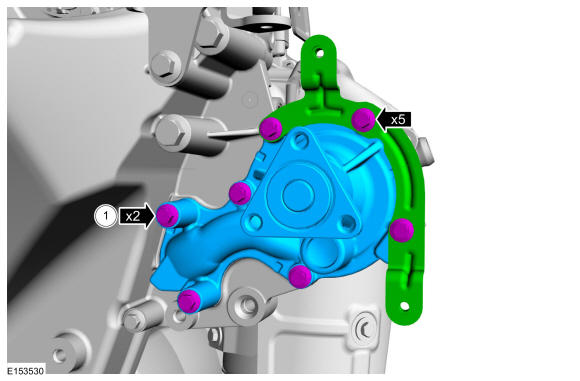

1.

NOTE: Only tighten the bolts finger tight at this stage.
1. 1.

  NOTE: Make sure that new components are installed.

  Install the coolant pump and the bracket.

GFD139667

Courtesy of FORD MOTOR COMPANY

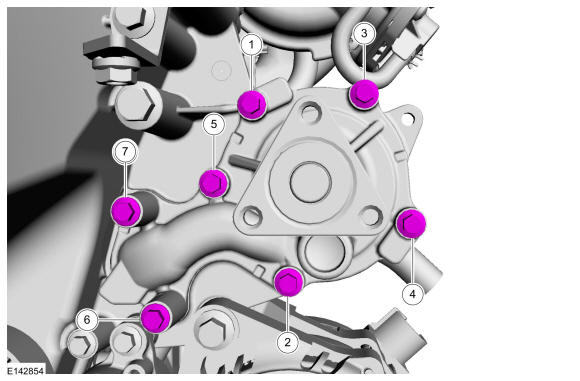

2.

Tighten the bolts in sequence order.
Torque:

1-5: 89 lb.in (10 Nm)

6-7:

Stage 1: 133 lb.in (15 Nm)

Stage 2: 90 °

Fig 1: Coolant Pump Tightening Sequence

GFD139668

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Only tighten the bolts finger tight at this stage.

Install the coolant pump pulley and the bolts.

GFD139665

Courtesy of FORD MOTOR COMPANY

4.

Install the accessory drive belt. Refer to: Accessory Drive Belt .

5.

Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (25 Nm)

GFD139664

Courtesy of FORD MOTOR COMPANY

6.

If equipped. Install the accessory drive shield and tighten the bolts.
Torque: 97 lb.in (11 Nm)

GFD138842

Courtesy of FORD MOTOR COMPANY

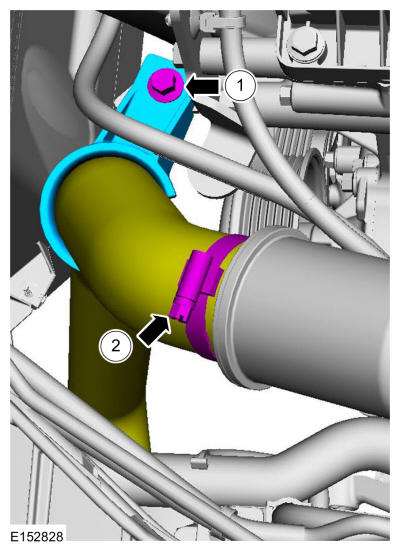

7.
1. 1.

  If equipped with FEAD shield. Install the support bracket and tighten the bolt.
  Torque: 89 lb.in (10 Nm)
1. 2.

  Tighten the clamp. Connect the CAC tube.
  Torque: 44 lb.in (5 Nm)

GFD139669

Courtesy of FORD MOTOR COMPANY

8.

If equipped with FEAD shield.
- Connect the vent hose.
- Install the turbocharger inlet tube and tighten the clamps.
  Torque: 44 lb.in (5 Nm)

GFD139662

Courtesy of FORD MOTOR COMPANY

9.

Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
