Engine Cooling - Component Location

WARNING: This page is about a different variant/trim than selected.

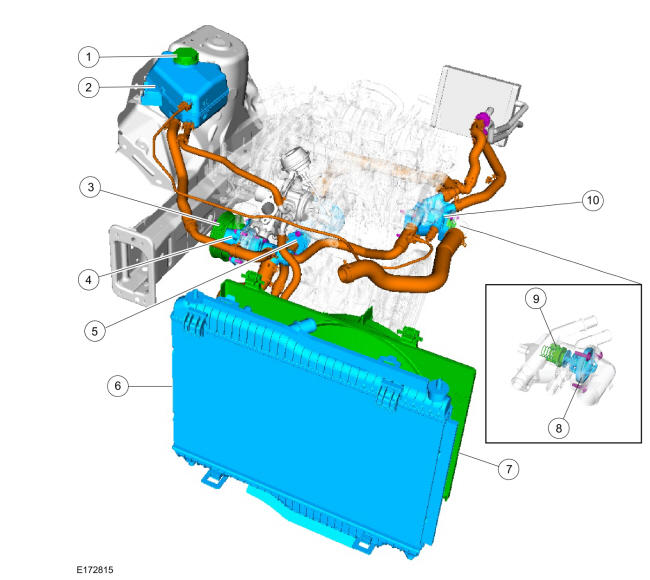

GFD139647Courtesy of FORD MOTOR COMPANY
Item Description
1 Pressure relief cap
2 Degas bottle
3 Coolant pump pulley
4 Coolant pump
5 Cylinder Block Thermostat
6 Radiator
7 Cooling fan motor and shroud
8 Thermostat
9 Bypass valve
10 Thermostat housing

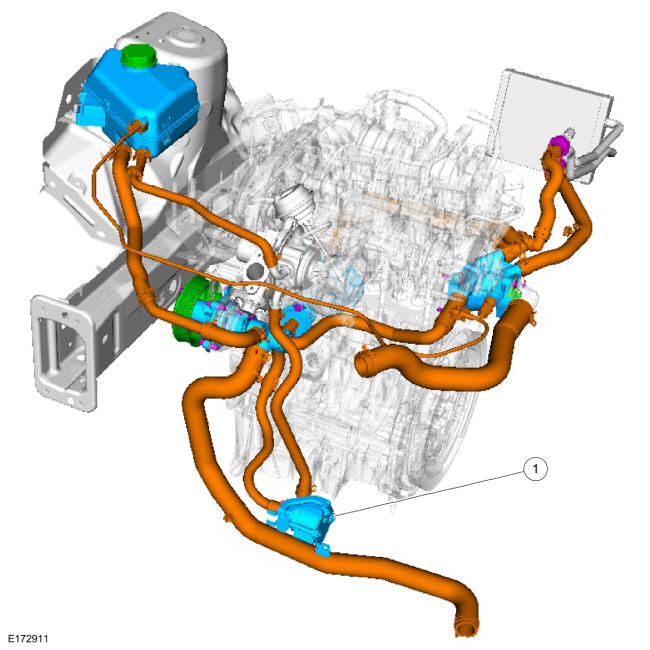

GFD139648Courtesy of FORD MOTOR COMPANY
Item Description
1 Electric Coolant Pump

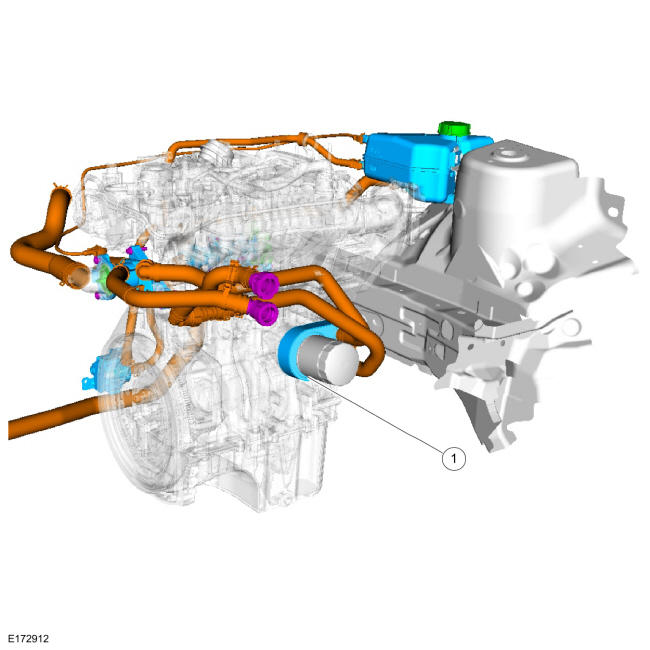

GFD139649Courtesy of FORD MOTOR COMPANY
Item Description
1 Oil Cooler
