Starter Motor: Installation

WARNING: This page is about a different variant/trim than selected.

1.
1. 1.

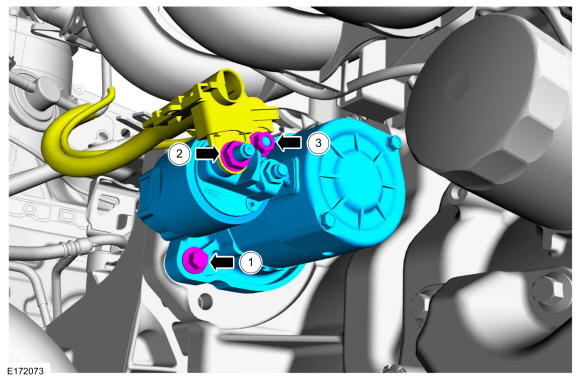

  Install the starter motor, then install and tighten the starter motor retaining bolt.
  Torque: 26 lb.ft (35 Nm)
1. 2.

  Connect the battery positive cable at the starter motor, then install and tighten the battery positive cable retaining nut.
  Torque: 106 lb.in (12 Nm)
1. 3.

  Connect the starter motor control wire at the starter motor, then install and tighten the starter motor control wire retaining nut.
  Torque: 53 lb.in (6 Nm)

GFD139895

Courtesy of FORD MOTOR COMPANY

2.

To install, reverse the removal procedure.
