1.6L EcoBoost

WARNING: This page is about a different variant/trim than selected.

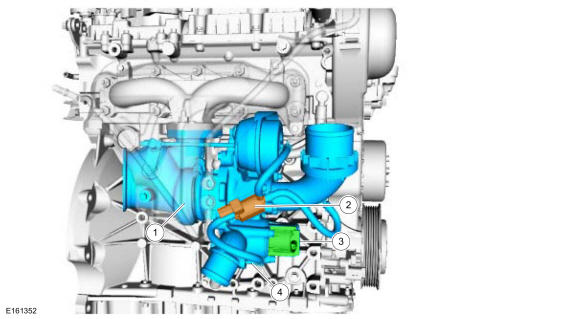

GFD139860Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger
2 Wastegate control valve solenoid
3 Turbocharger bypass valve
4 Pressure side of compressor
