Fuel Tank Draining

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	292-00004Fuel Tanker 100 GPM

Draining

• 1.


  NOTE: Do not remove the hose clamp at the filler neck hose to fuel tank connection. The plastic tank is susceptible to damage with over torquing and or multiple re-torques.

• 2.

  Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

• 3.


  NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

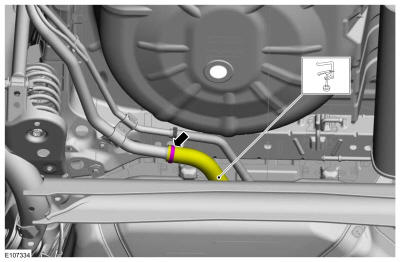

  Release the clamp and position the fuel tank filler pipe hose aside.Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

Courtesy of FORD MOTOR COMPANY

• 4.

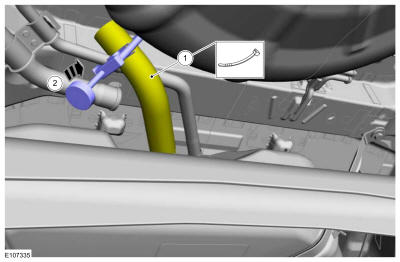

  Secure the fuel tank filler pipe hose above the fuel level.

Courtesy of FORD MOTOR COMPANY

• 5.

  Insert a fuel drain tube into the fuel tank filler pipe hose, attach the Fuel Storage Tanker and drain as much fuel as possible from the fuel tank.Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
