Fuel Charging and Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

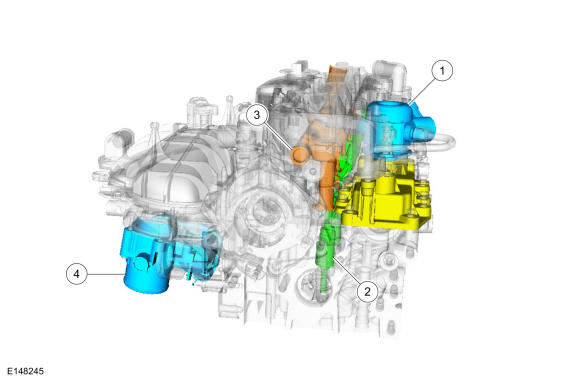

1.6L EcoBoost
| Item | Description |
|---|---|
| 1 | Fuel injection pump |
| 2 | Fuel injector |
| 3 | Fuel rail |
| 4 | Throttle Body (TB) |

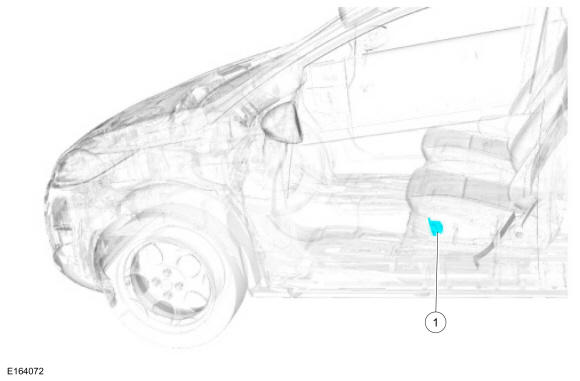

FPDM (fuel pump driver module)
| Item | Description |
|---|---|
| 1 | FPDM (fuel pump driver module). Comments: The FPDM (fuel pump driver module) is located under the carpet and under left front seat attached to the rear of the front cross floor support in front of the left front seat. |
