Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

  1. 2.

    Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .

  1. 3.

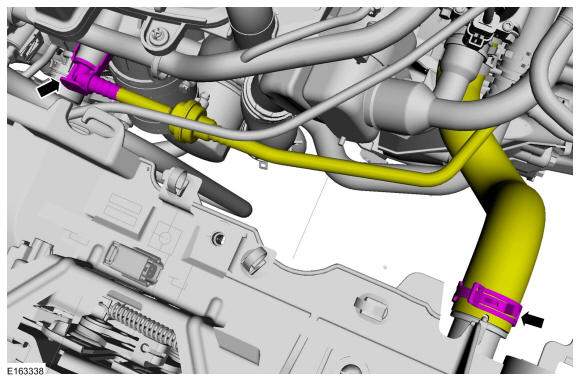

    Depress the tab and disconnect the vent tube. Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
GFD139778Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: The component must be removed by hand, the use of tools is prohibited.

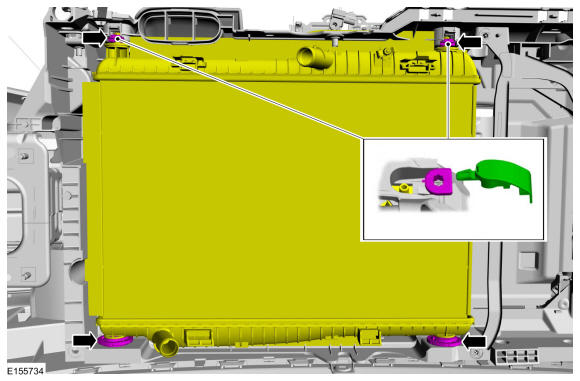

    Release the tabs and remove the radiator support brackets.

GFD139779Courtesy of FORD MOTOR COMPANY

  1. 5.

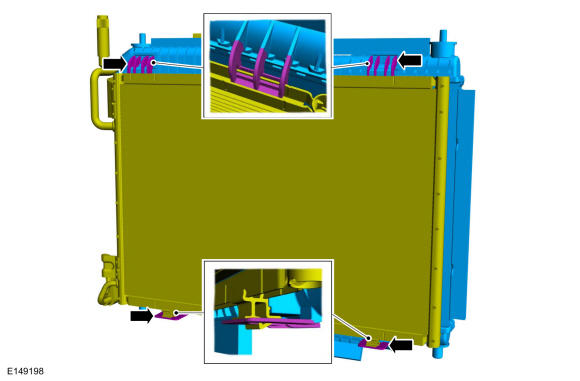

    Unclip the lower tabs and lift the radiator upward while pressing down on the A/C condenser. Remove the radiator.
GFD139687Courtesy of FORD MOTOR COMPANY
