Coolant Shutoff Solenoid Valve: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1.

Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

2.

Remove the engine appearance cover.

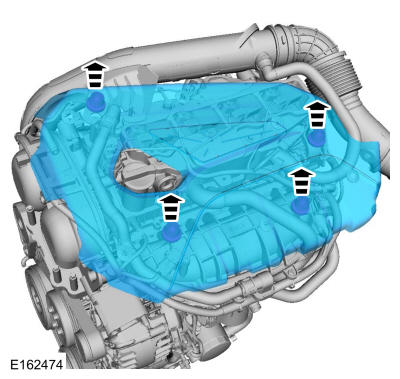

GFD139769

Courtesy of FORD MOTOR COMPANY

3.
1. 1.

  Disconnect the resonator tube.
1. 2.

  Release the clamp.
1. 3.

  Detach the grommet.
1. 4.

  Loosen the clamp and remove the resonator assembly.
1. 5.

  Loosen the clamp.
1. 6.

  Position aside the CAC outlet pipe.

GFD139315

Courtesy of FORD MOTOR COMPANY

4.

Refer to: Jacking and Lifting - Overview .

5.

If equipped. Remove the underbody splash shield fasteners and the underbody splash shield.

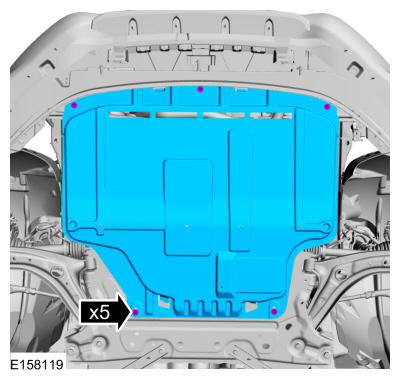

GFD139770

Courtesy of FORD MOTOR COMPANY

6.
1. 1.

  Remove the bolt.
  Torque: 133 lb.in (15 Nm)
- Disconnect the electrical connector and the vent tube.
- Loosen the clamp and remove the CAC inlet pipe.

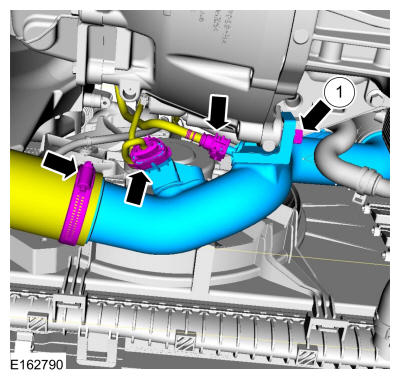

GFD139766

Courtesy of FORD MOTOR COMPANY

7.

Remove the bolts and position aside the throttle body.
Torque: 71 lb.in (8 Nm)

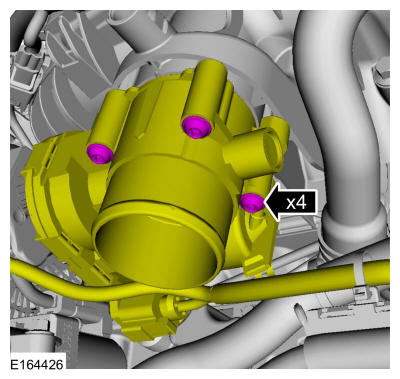

GFD139771

Courtesy of FORD MOTOR COMPANY

8.

Disconnect the coolant shutoff solenoid valve electrical connector, detach the retainer and position the wiring harness aside.

GFD139772

Courtesy of FORD MOTOR COMPANY

9.
1. 1.

  Release the clip.
1. 2.

  Disconnect the coolant hose.
1. 3.

  Remove the bolts and the coolant shutoff solenoid valve.
  Torque: 89 lb.in (10 Nm)

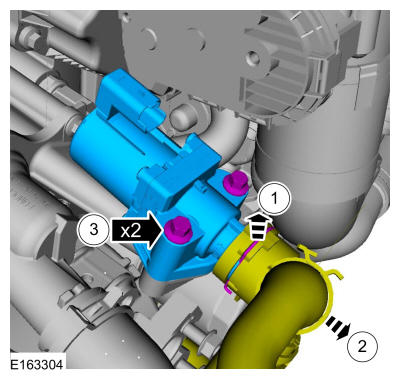

GFD139773

Courtesy of FORD MOTOR COMPANY
