Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.

1.

Remove the Crankshaft front seal. Refer to: Crankshaft Front Seal .

2.

Remove Special Service Tool: 303-1097 Locking Tool, Variable Camshaft Timing Oil Control Unit.

GFD139429

Courtesy of FORD MOTOR COMPANY

3.

NOTE: There are different length of bolts noted in removal.

NOTE: Install engine mount bracket to support the engine during oil pan removal.

Install the engine mount bracket and the bolts.

Torque: 41 lb.ft (55 Nm)

GFD139343

Courtesy of FORD MOTOR COMPANY

4.

Install the engine mount stud.
Torque: 89 lb.in (10 Nm)

GFD139430

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Install engine mount to support the engine during oil pan removal.
- 1.

  Install the engine mount and the nuts.
  Torque: 59 lb.ft (80 Nm)
- 2.

  Install the bolts.
  Torque: 35 lb.ft (48 Nm)

GFD139431

Courtesy of FORD MOTOR COMPANY

6.

Remove the oil pan. Refer to: Oil Pan .

7.

Remove the bolts and the oil pump screen and pickup tube.

GFD139130

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Note the different lengths of the bolts.

Remove the bolts and the oil pump.

GFD139432

Courtesy of FORD MOTOR COMPANY

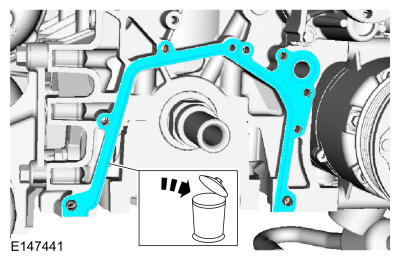

9.

Remove and discard the oil pump gasket.

GFD139132

Courtesy of FORD MOTOR COMPANY
