Oil Pump: Installation
WARNING: This page is about a different variant/trim than selected.
- 2.
Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
- 3.NOTE: Only tighten the bolts finger tight at this stage.

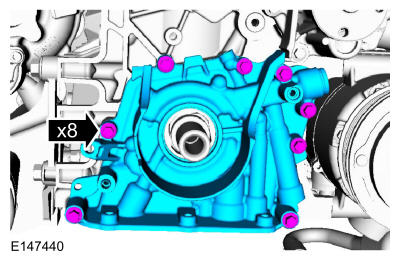

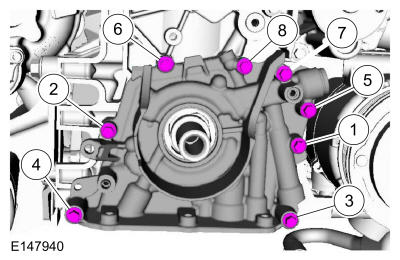

Install the oil pump and the bolts finger-tight.
- 5.NOTE: The O-ring seal is to be reused unless damaged.
Inspect the O-ring seal, if necessary replace.
- 7.
Install the oil pan. Refer to: Oil Pan .
- 8.
Support the engine. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block
- 11.NOTE: Note the different lengths of the bolts for installation.

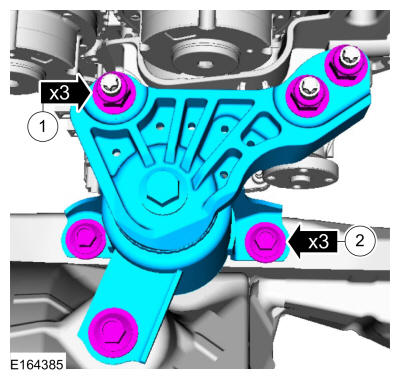

Remove the bolts and the engine mount bracket.
- 13.
Install the Crankshaft front seal. Refer to: Crankshaft Front Seal .
