Oil Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.

1.

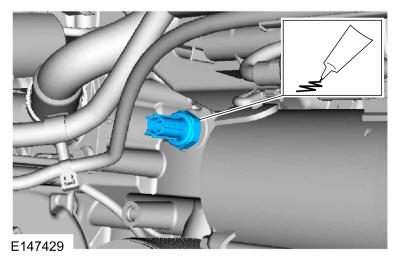

Install a new EOP switch.
Material: Motorcraft ® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Torque: 159 lb.in (18 Nm)

GFD139138

Courtesy of FORD MOTOR COMPANY

2.

Connect the EOP switch electrical connector.

GFD139137

Courtesy of FORD MOTOR COMPANY

3.

Lubricate the new engine oil filter O-ring seal with clean engine oil and install.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Torque: 128 lb.in (14.5 Nm)

GFD139411

Courtesy of FORD MOTOR COMPANY

4.
- 1.

  Install the CAC outlet tube and the nut.
  Torque: 133 lb.in (15 Nm)
- 2.

  Tighten the hose clamp and connect the electrical connector.
  Torque: 44 lb.in (5 Nm)

GFD139323

Courtesy of FORD MOTOR COMPANY

5.

Connect the TP sensor electrical connector.

GFD139316

Courtesy of FORD MOTOR COMPANY

6.
- Position the CAC hose and tighten the clamp.
  Torque: 44 lb.in (5 Nm)
- Install the resonator assembly and connect the resonator assembly hoses. Use the General Equipment: Hose Clamp Remover/Installer

GFD139324
