Oil Pan: Removal
WARNING: This page is about a different variant/trim than selected.
- 2.
Remove the oil level indicator.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

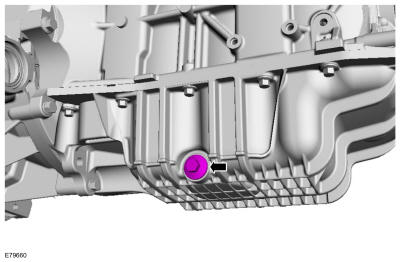

- Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
Torque: 21 lb.ft (28 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Remove and discard the engine oil filter. Use the General Equipment: Strap Wrench
 Courtesy of FORD MOTOR COMPANY
|
- 5.
- 2.

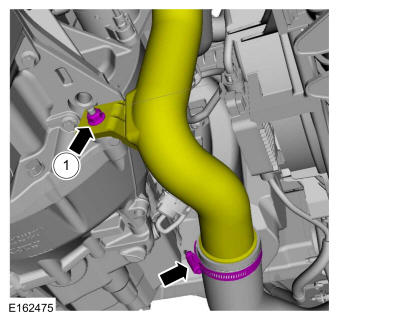

Loosen the clamp, position aside the CAC tube.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Remove the retainers and the shield.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Loosen the clamps and remove the CAC tube.
 Courtesy of FORD MOTOR COMPANY
|
- 8.

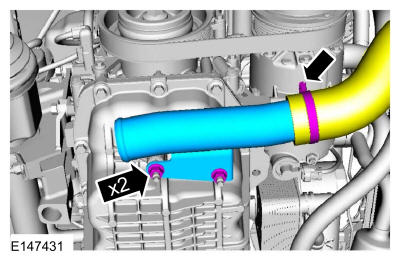

Loosen the clamp, remove the nuts and the CAC tube.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Remove the oil pan bolts.
 Courtesy of FORD MOTOR COMPANY
|
- 10.
Using the pry pads, remove the oil pan.
 Courtesy of FORD MOTOR COMPANY
|
