Oil Pan: Installation
- 1.NOTE: Do not use metal scrapers, plastic scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths.NOTE: Make sure that the mating faces are clean and free of foreign material.

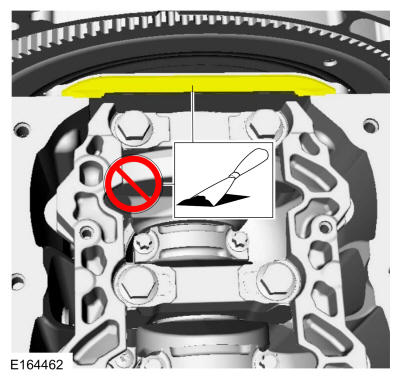

Do not use any type of scrapers. There is a rubber sealing surface on the bottom of the Crankshaft rear seal, take extra care when cleaning the specified area by peeling off the old sealant by hand.
- 2.NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.NOTE: Make sure that the mating faces are clean and free of foreign material.

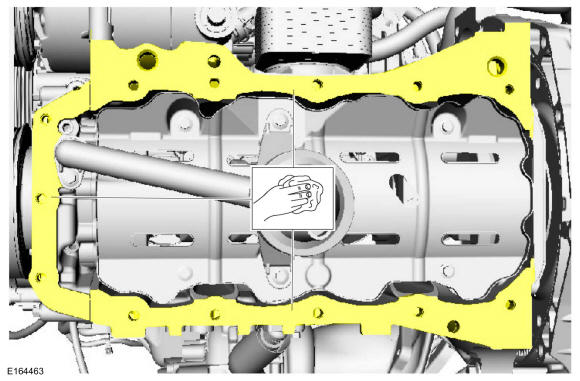

Clean only the specified area with the specified material and a plastic scraping tool to remove traces of sealant.
Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A
- 3.NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.NOTE: Make sure that the mating faces are clean and free of foreign material.

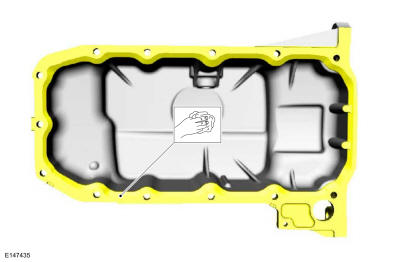

Clean only the specified area with the specified material and a plastic scraping tool to remove traces of sealant.
Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A
- 4.
Install the following items:-
NOTE: The use of the two studs will aid in the alignment of the oil pan.

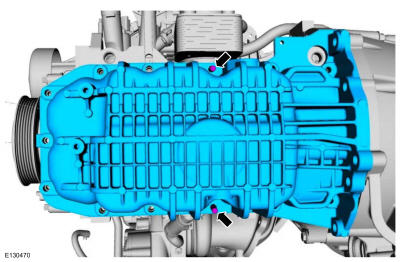

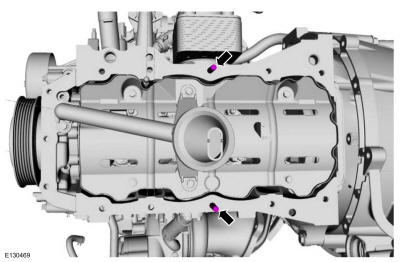

Install two M8x20 studs.
-
- 5.NOTE: The component must be installed within 5 minutes of applying the sealant.

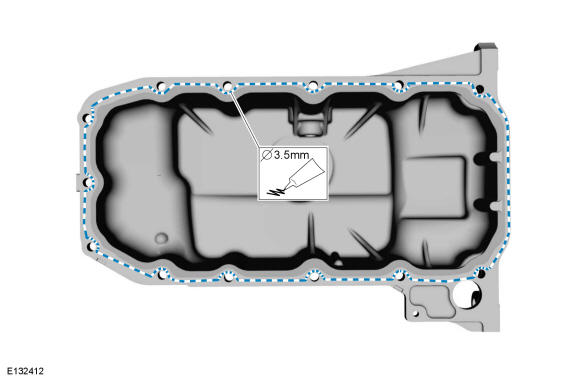

Apply a 3.5 mm (0.137 in) bead of silicone sealant.
Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
- 8.

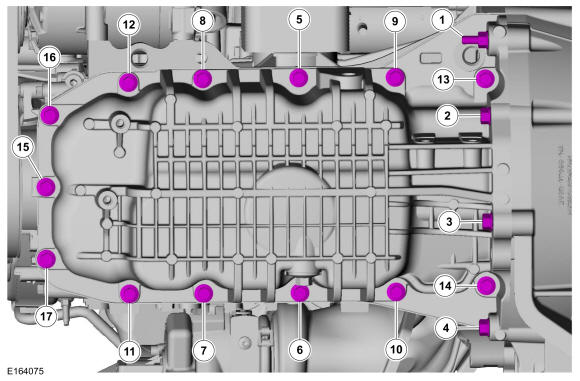

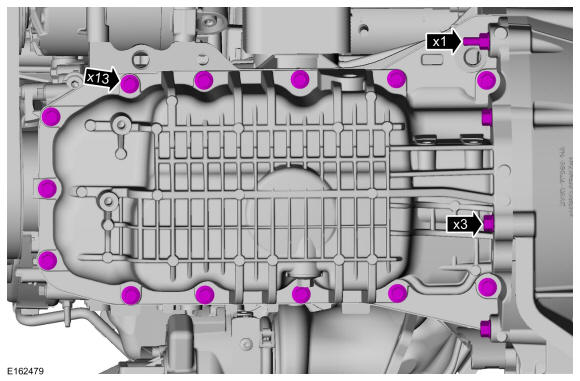

Tighten the oil pan bolts in sequence shown below.Torque:
1 - 4: 35 lb.ft (47 Nm)
5 - 17: 89 lb.in (10 Nm)
5 - 17: 168 lb.in (19 Nm)
- 9.
- 1.

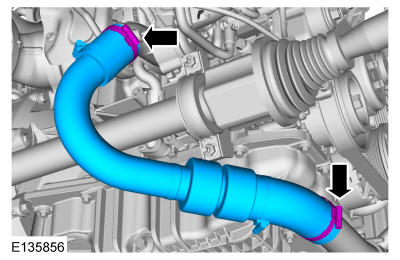

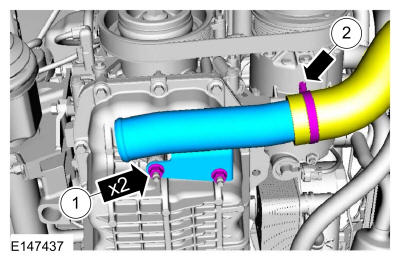

Install the CAC tube and the nuts.Torque: 159 lb.in (18 Nm)
- 2.
Tighten the clamp.Torque: 44 lb.in (5 Nm)
- 1.
- 12.
- 1.

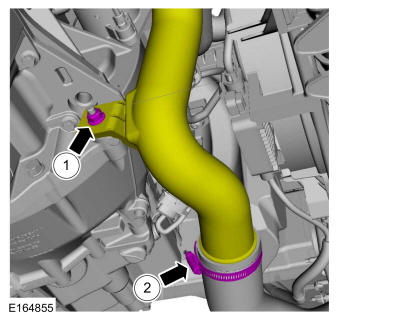

Position the CAC tube and tighten the nut.Torque: 133 lb.in (15 Nm)
- 2.
Tighten the clamp.Torque: 44 lb.in (5 Nm)
- 1.
- 13.

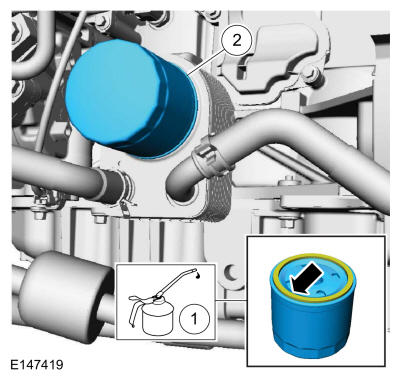

Lubricate and install the new engine oil filter.Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque: 128 lb.in (14.5 Nm)
- 14.
Fill the engine with engine oil.Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
