Crankshaft Rear Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
Remove the following items:
- Remove the flywheel. Refer to: Flywheel .
- Remove the oil pan. Refer to: Oil Pan .
- 2.

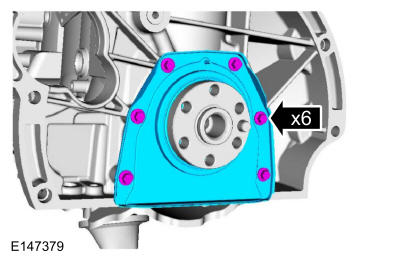

Remove the bolts and the Crankshaft rear seal.
 Courtesy of FORD MOTOR COMPANY
|
