Crankshaft Rear Seal: Installation

WARNING: This page is about a different variant/trim than selected.

1.

NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: The new Crankshaft rear seal is supplied with an alignment sleeve which must be removed after installation.

NOTE: Do not remove the alignment sleeve from the Crankshaft rear seal prior to installation on the Crankshaft.

Install the rear Crankshaft seal and the bolts in sequence shown below.

Torque:

Stage 1: Tighten bolts 1 through 6 to:: 35 lb.in (4 Nm)

Stage 2: Tighten bolts 1 through 6 to:: 89 lb.in (10 Nm)

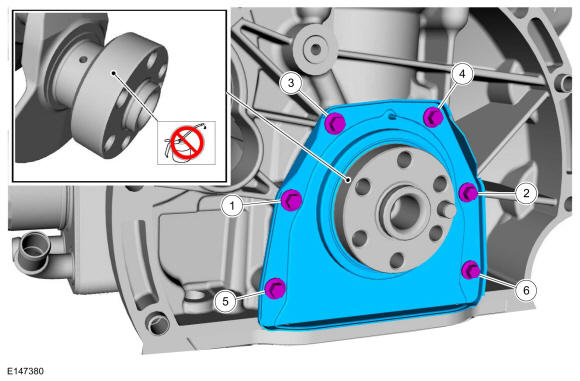

Fig 1: Crankshaft Rear Seal Tightening Sequence

GFD139036

Courtesy of FORD MOTOR COMPANY

2.

Install the following items:
1. Install the oil pan. Refer to: Oil Pan .
2. Install the flywheel. Refer to: Flywheel .
