Removal And Installation: Camshafts: Installation
- 1.NOTE: If any new parts are being installed (cylinder head, valves, tappets, camshafts) it is necessary to check the valve clearance, follow the next 12 steps exactly or serious damage to the engine may occur. If the original parts are being installed it is not necessary to check the valve clearance so proceed to step 13.

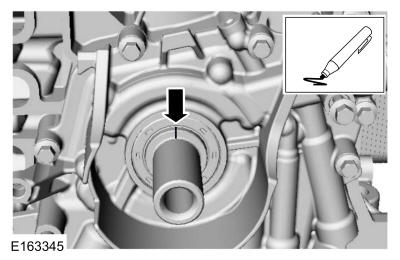

Place a paint mark on the Crankshaft at the 12 o'clock position.
- 4.NOTE: Rotating the Crankshaft will position all of the pistons below the deck of the cylinder block and allow the camshafts to be installed and the valve clearance checked without the possibility of damage to the valves or pistons.

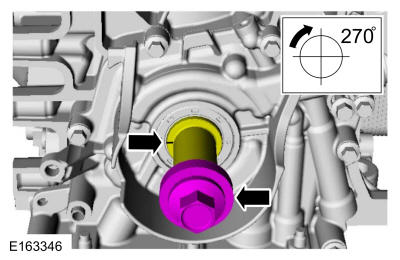

Using the Crankshaft bolt and washer, rotate the Crankshaft clockwise 270 degrees until the paint mark is at the 9 o'clock position.
- 5.NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.NOTE: Make sure that the components are installed to the location and orientation noted before removal.NOTE: Make sure that the mating faces are clean and free of foreign material.NOTE: Apply clean engine oil to the bearing surfaces of the camshafts, camshaft bearing caps and the VCT bridge.

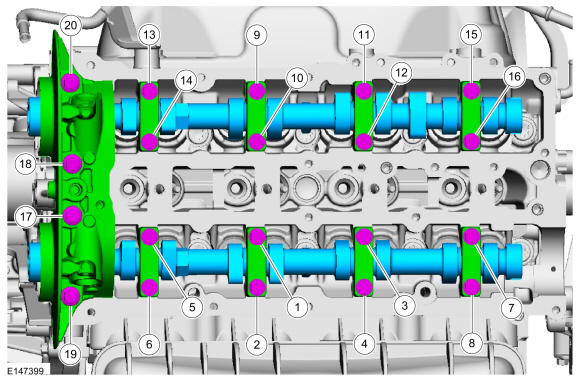

Tighten the bolts evenly, half a turn at a time, until the camshaft bearing caps and the VCT bridge are seated against the cylinder head.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque:
Stage 1: Tighten bolts 1 through 16 to:: 62 lb.in (7 Nm)
Stage 2: Tighten bolts 17 through 20 to:: 89 lb.in (10 Nm)
Stage 3: Tighten bolts 1 through 16 an additional:: 45 °
Stage 4: Tighten bolts 17 and 18 an additional:: 70 °
Stage 5: Tighten bolts 19 and 20 an additional:: 53 °
- 6.
- 1.

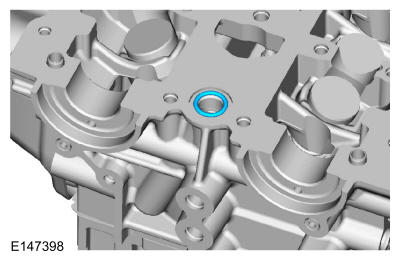

Using the flats of the camshaft, rotate the camshaft to place the cam lobe at base circle, with the lobe pointed away from the tappet.
- 2.

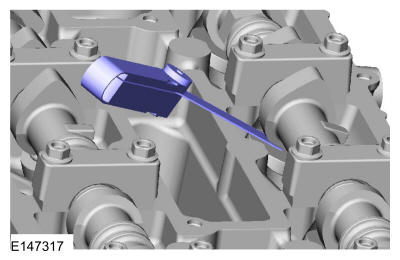

Use a feeler gauge to measure the clearance of each valve and record its location. Use the General Equipment: Feeler Gauge
- 3.
Repeat to measure all of the lobe/tappet clearances.
- 1.
- 7.NOTE: Select tappets using this formula: ideal tappet thickness = measured clearance + the existing tappet thickness - nominal clearance. Select the closest tappet size to the ideal tappet thickness available and mark the installation location.NOTE: The nominal clearance is 0.0118in (.3mm) for intake and 0.0157in (.4mm) for exhaust.NOTE: The acceptable clearances after being fully installed is 0.010-0.014in (.255-.345mm) for intake and 0.014-0.018in (.355-.445mm) for exhaust.
- 8.NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.NOTE: Note the location and orientation of each camshaft bearing cap and the position of the camshaft lobes on the No. 1 cylinder for installation reference.

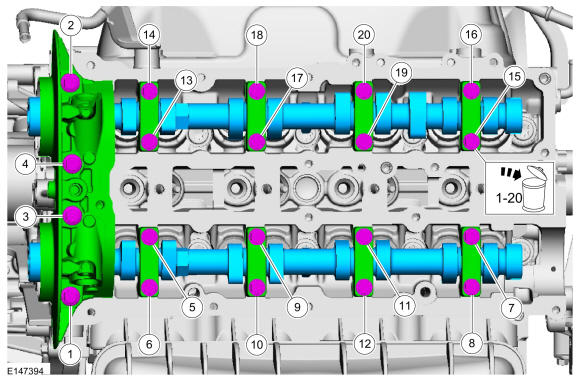

Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps in sequence shown below.
- 10.NOTE: Rotating the Crankshaft will position the engine at TDC and allow you to install the camshafts in the same position as noted during the disassembly.

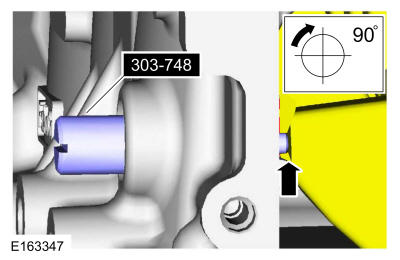

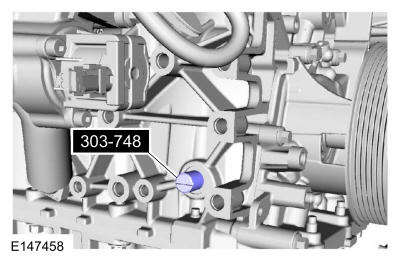

Rotate the Crankshaft clockwise 90 degrees so the Crankshaft contacts the Crankshaft timing peg.

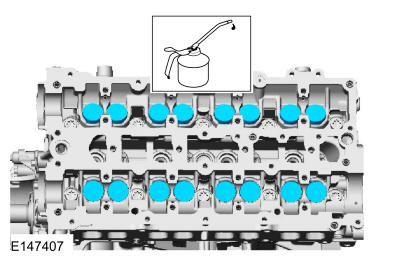

- 11.NOTE: Lubricate the tappets with clean engine oil.
If necessary, replace any tappets with the correct tappets selected during the valve clearance check.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- 12.NOTE: Verify the Crankshaft contacts the Timing Peg and the engine is still at TDC
Install Special Service Tool: 303-393A Locking Tool, Flywheel., 303-393-02 Adapter for 303-393.
- 14.NOTE: The component must be installed within 5 minutes of applying the sealant.

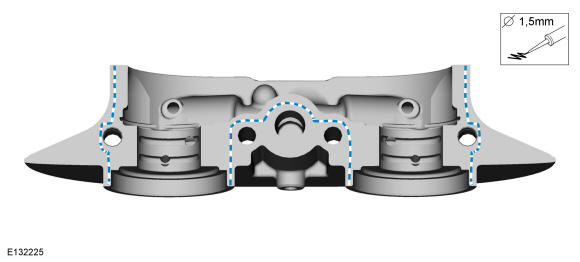

Apply flange sealant as shown below.
Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)
- 15.NOTE: Failure to follow the camshaft tightening procedure can result in damage to the camshafts.NOTE: Make sure that the components are installed to the location and orientation noted before removal.NOTE: Make sure that the mating faces are clean and free of foreign material.NOTE: Apply clean engine oil to the bearing surfaces of the camshafts, camshaft bearing caps and the VCT bridge.NOTE: Make sure that new bolts are installed.
Tighten the bolts evenly, half a turn at a time, until the camshaft bearing caps and the VCT bridge are seated against the cylinder head.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
Torque:
Stage 1: Tighten bolts 1 through 16 to:: 62 lb.in (7 Nm)
Stage 2: Tighten bolts 17 through 20 to:: 89 lb.in (10 Nm)
Stage 3: Tighten bolts 1 through 16 an additional:: 45 °
Stage 4: Tighten bolts 17 and 18 an additional:: 70 °
Stage 5: Tighten bolts 19 and 20 an additional:: 53 °
- 16.

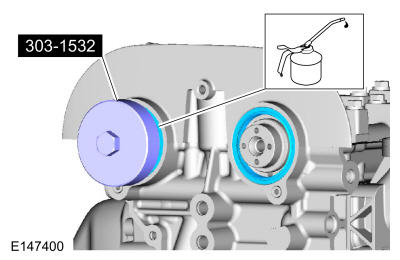

Lubricate with clean engine oil and using the special tool, install the camshaft seals. Use Special Service Tool: 303-1532 Installer, Camshaft Seal.Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- 17.
Install the VCT units. Refer to: Variable Camshaft Timing (VCT) Unit .
