Disassembly And Assembly Of Subassemblies: Piston: Disassembly

• 1.

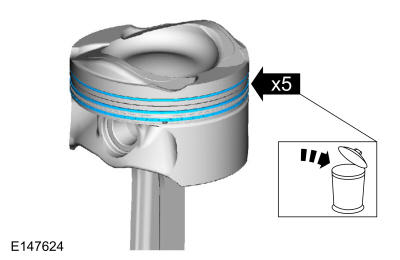

  Remove and discard the piston rings.

Courtesy of FORD MOTOR COMPANY

• 2.

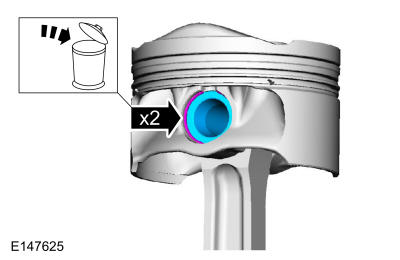

  • Remove and discard the piston pin retainers.
  • Remove the piston pin.

Courtesy of FORD MOTOR COMPANY

• 3.

  Remove the piston from the connecting rod.

Courtesy of FORD MOTOR COMPANY

• 4.

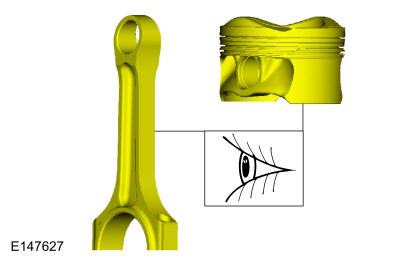

  Inspect the piston. Refer to: Piston Inspection .

Courtesy of FORD MOTOR COMPANY
