Cylinder Head: Assembly
WARNING: This page is about a different variant/trim than selected.

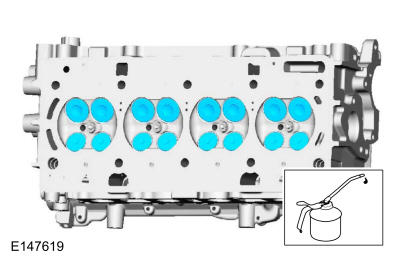

- 1.NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed. Coat the valve stems with clean engine oil.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

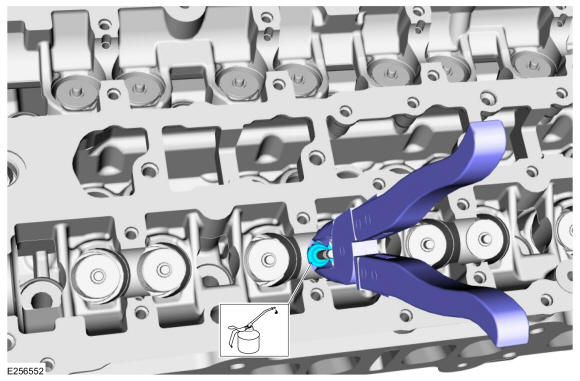

- 2.NOTE: Use valve stem seal pliers (such as BeTooll HW0107 or equivalent).
- Lubricate the valve stem seal with clean engine oil.
Material: Motorcraft ® SAE 5W-20 Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
- Use commercially available valve stem seal pliers to install the valve stem seal.
- Lubricate the valve stem seal with clean engine oil.
- 3.NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets.
Check the seating of the valve collet. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-472 (T94P-6565-AH) Adapter, Valve Spring Compressor., 303-1249 Valve Spring Compressor.
Material: Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

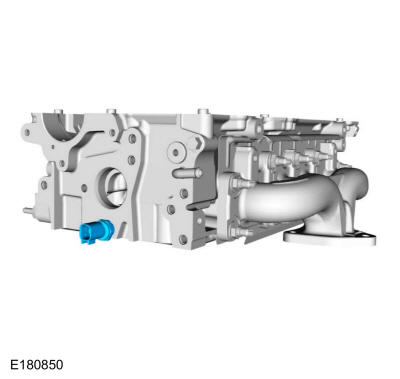

- 4.NOTE: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.

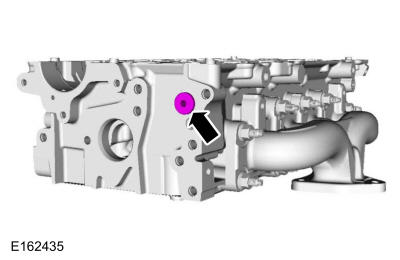

Torque: 133 lb.in (15 Nm)

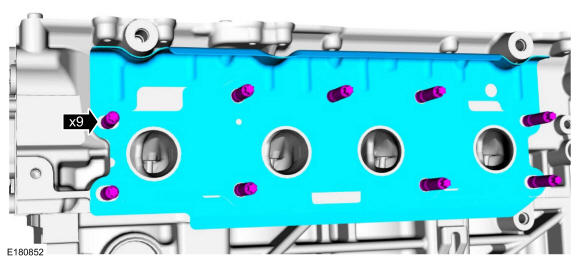

- 6.

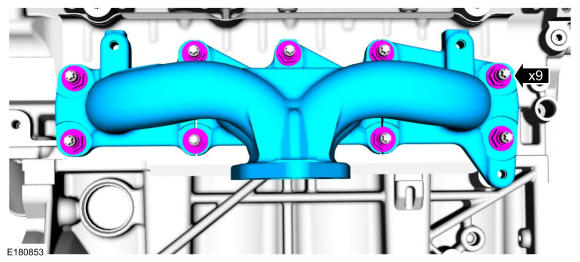

- Torque: 15 lb.ft (21 Nm)

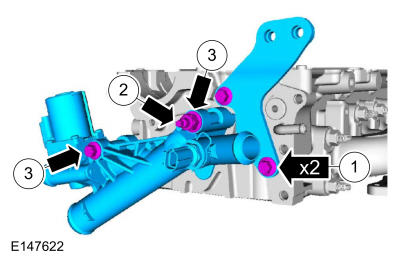

- Tighten the fasteners to specification a second time.
Torque: 15 lb.ft (21 Nm)
