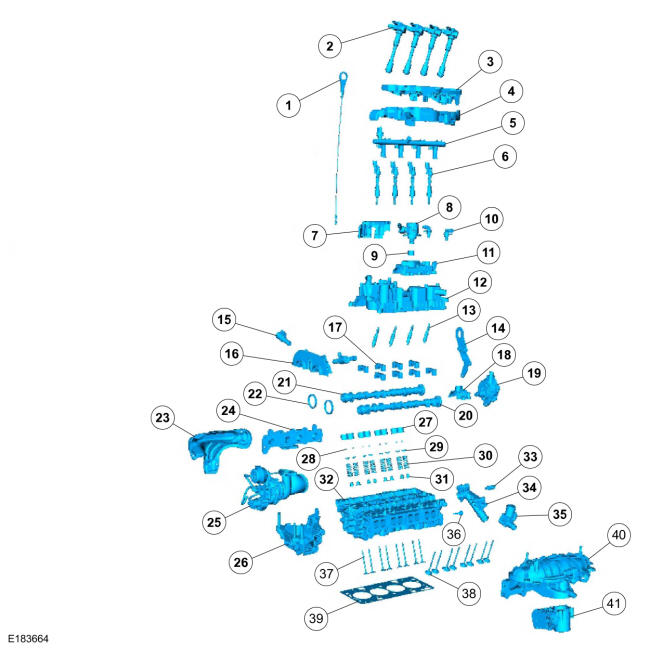

Exploded View Of Upper Engine
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6750 | Oil indicator |
| 2 | 12A366 | Ignition coil on plug (4 required) |
| 3 | 12257 | Ignition coil mounting bracket |
| 4 | 9U550 | Ignition coil mounting bracket insulator |
| 5 | 9H487 | Fuel rail |
| 6 | 9F593 | Fuel injector (4 required) |
| 7 | 9A413 | Fuel injection pump cover |
| 8 | 9D376 | Fuel injection pump |
| 9 | 6C287 | Fuel injection pump tappet |
| 10 | 12K073 | Camshaft Position(CMP) sensor (2 required) |
| 11 | 9346 | Fuel injection pump mounting bracket |
| 12 | 6M293 | Cover assembly |
| 13 | 12405 | Spark plug (4 required) |
| 14 | 17K078 | Lift eye bracket |
| 15 | 6L713 | Variable valve timing (VVT) unit oil control solenoid |
| 16 | - | Variable valve timing (VVT) unit bridge (part of 6049) |
| 17 | - | Camshaft cap (8 required) (part of 6049) |
| 18 | - | Vacuum pump mounting bracket (part of 6069) |
| 19 | 2A451 | Vacuum pump |
| 20 | 6A270 | Intake camshaft |
| 21 | 6A272 | Exhaust camshaft |
| 22 | 6K292 | Camshaft oil seals |
| 23 | 9N454 | Turbocharger heat shield |
| 24 | 9431 | Exhaust manifold |
| 25 | 6K682 | Turbocharger |
| 26 | 6F001 | Engine mounting bracket assembly |
| 27 | 6500 | Valve tappet (16 required) |
| 28 | 6518 | Valve collet (16 required) |
| 29 | 6514 | Valve spring retainer (16 required) |
| 30 | 6513 | Valve spring (16 required) |
| 31 | 6571 | Valve seal (16 required) |
| 32 | 6049 | Cylinder head |
| 33 | 12A648 | Engine Coolant Temperature(ECT) sensor |
| 34 | 8K556 | Coolant outlet |
| 35 | 18495 | Bitron valve |
| 36 | 6G004 | Cylinder Head Temperature (CHT) sensor |
| 37 | 6505 | Exhaust valve (8 required) |
| 38 | 6507 | Intake valve (8 required) |
| 39 | 6051 | Cylinder head gasket |
| 40 | 9424 | Intake manifold |
| 41 | 9F991 | Throttle body |
