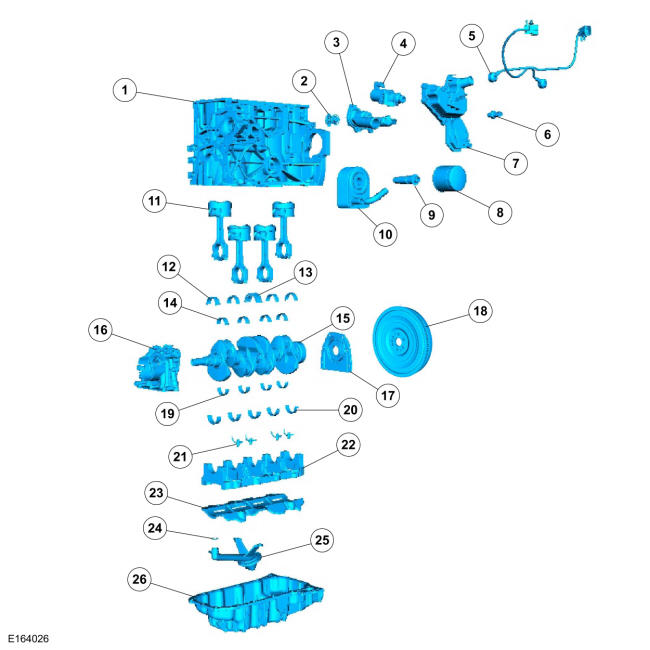

Exploded View Of Lower Engine
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6010 | Engine block |
| 2 | - | Thermostat (part of 9K478) |
| 3 | 9K478 | Thermostat housing |
| 4 | 8C605 | Bitron valve |
| 5 | 12A699 | Knock Sensor(KS) (2 required) |
| 6 | 9278 | Engine Oil Pressure(EOP) sensor |
| 7 | 6A785 | Crankcase vent oil separator |
| 8 | 6714 | Oil filter |
| 9 | 6L626 | Oil cooler mounting bolt |
| 10 | 6B856 | Oil cooler |
| 11 | 6100 | Piston and connecting rod (4 required) |
| 12 | 6333 | Upper main bearing (4 required) |
| 13 | 6337 | Upper main bearing |
| 14 | 6211 | Upper connecting rod bearing (4 required) |
| 15 | 6303 | Crankshaft |
| 16 | 6600 | Oil pump |
| 17 | 6K301 | Crankshaft rear oil seal with retainer plate |
| 18 | 6375 | Flywheel |
| 19 | 6211 | Lower connecting rod bearing (4 required) |
| 20 | 6A338 | Lower main bearing (4 required) |
| 21 | 6K868 | Piston oil cool valve |
| 22 | 6334 | Main bearing beam |
| 23 | 6B660 | Windage tray |
| 24 | 6625 | Oil pump screen and pickup tube O-ring seal |
| 25 | 6K621 | Oil pump screen and pickup tube |
| 26 | 6675 | Oil pan |
