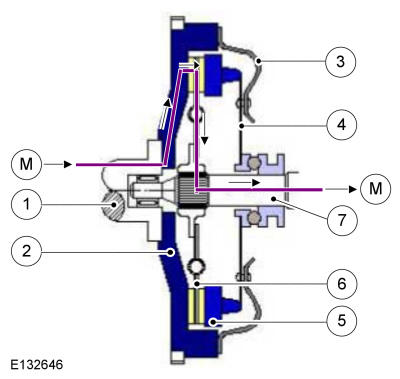

Torque path in a single disc dry clutch
| Item | Description |
|---|---|
| M | Ground torque path |
| 1 | Crankshaft |
| 2 | Flywheel |
| 3 | Clutch cover |
| 4 | Diaphragm spring |
| 5 | Pressure plate |
| 6 | Clutch disc with friction linings |
| 7 | Transmission input shaft |
The torque path in a single disc dry clutch as shown in the diagram above is as follows:
- Crankshaft
- Flywheel
- Clutch cover
- Diaphragm spring
- Pressure plate
- Clutch disc
- Transmission input shaft
