Gearshift Lever Boot: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

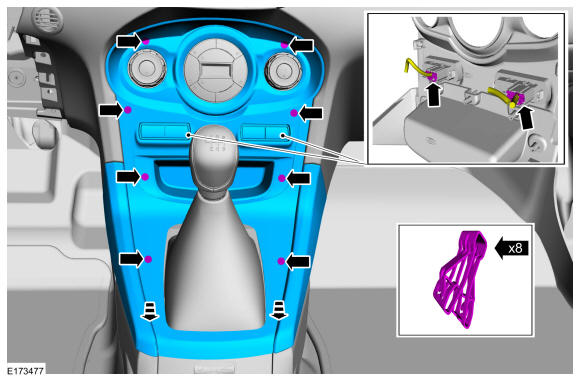

- 1.
Release the clips and remove the instrument panel center finish panel.
- Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

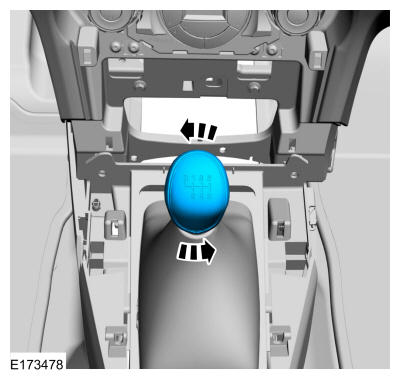

- 2.
Rotate and remove the selector lever knob.
 Courtesy of FORD MOTOR COMPANY
|

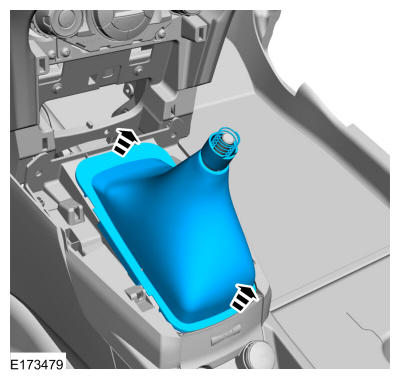

- 3.
Remove the gearshift lever boot.
 Courtesy of FORD MOTOR COMPANY
|
