Gearshift Cables - 6-Speed Manual Transmission - B6: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.
Remove the battery tray. Refer to: Battery Tray - 1.0L EcoBoost (90kW/120PS)/1.6L EcoBoost (132kW/180PS) - Sigma .
- 3.
- Disconnect the gearshift cable ends from the ball studs of the transmission selector mechanism.
- Slide the lock sleeve and remove the gearshift cables from the bracket.
- 6.
- 1.

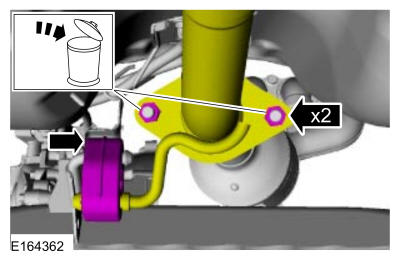

Remove the nuts and the center support brace.

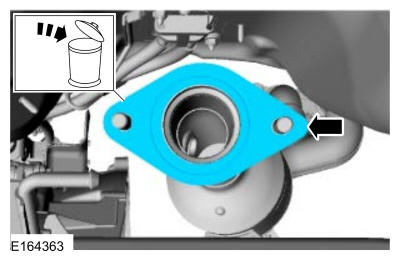

- Remove the exhaust isolator.
- 2.
Remove the nuts and position aside the exhaust heat shield.
- 1.
- 8.
Remove the floor console. Refer to: Floor Console .
- 9.
- Disconnect the gearshift cable ends from the ball studs of the gearshift lever.
- Slide the lock sleeve and remove the gearshift cables from the gearshift lever base.
