Gearshift Cables - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma, 5-Speed Manual Transmission - B5A/5-Speed Manual Transmission - B5/IB5: Removal

• 1.

  With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 2.

  Remove the battery tray. Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) - Sigma .

• 3.

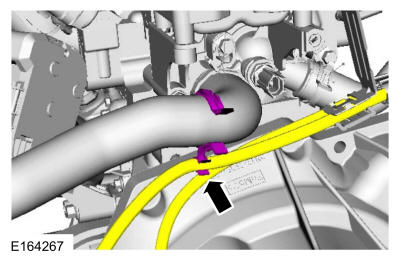

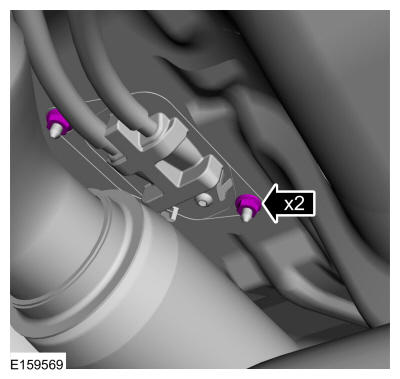

  Remove the gearshift cables from the retainer.

Courtesy of FORD MOTOR COMPANY

• 4.

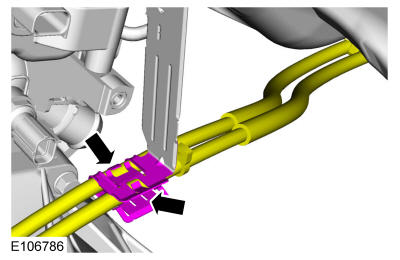

  Remove the gearshift cables from the retainer.

Courtesy of FORD MOTOR COMPANY

• 5.

  If equipped. Remove the retainers and the under body shield.

Courtesy of FORD MOTOR COMPANY

• 6.

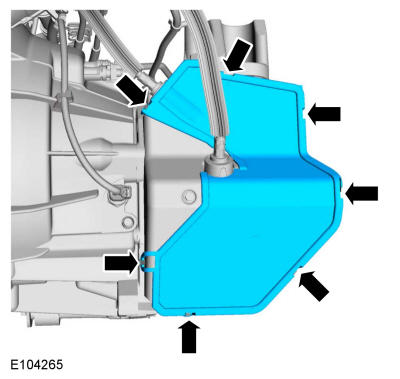

  Remove the gearshift housing access cover.

Courtesy of FORD MOTOR COMPANY

• 7.

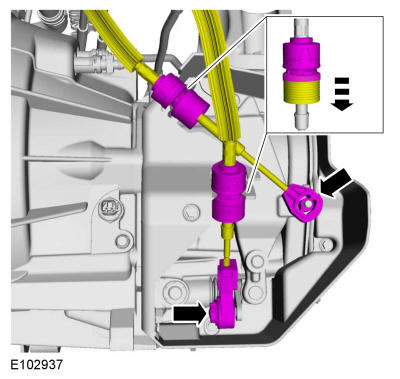

  • Disconnect the gearshift cable ends from the ball studs of the transmission selector mechanism.
  • Slide the lock sleeve and remove the gearshift cables from the bracket.

Courtesy of FORD MOTOR COMPANY

• 8.

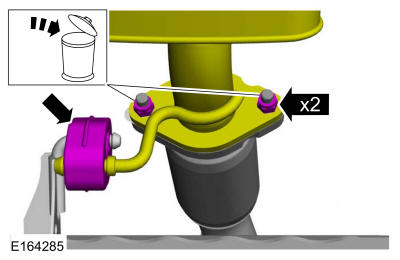

  Detach the muffler isolator, remove and discard the muffler mounting nuts.

Courtesy of FORD MOTOR COMPANY

• 9.

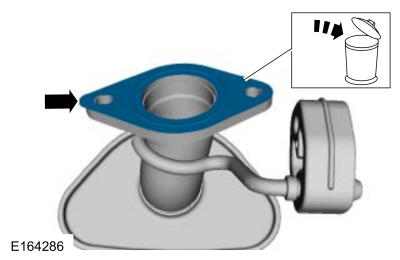

  Remove and discard the muffler gasket.

Courtesy of FORD MOTOR COMPANY

• 10.

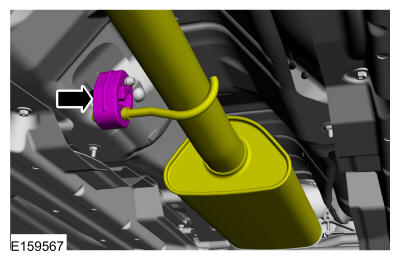

  Remove the exhaust tailpipe isolator.

Courtesy of FORD MOTOR COMPANY

• 11.

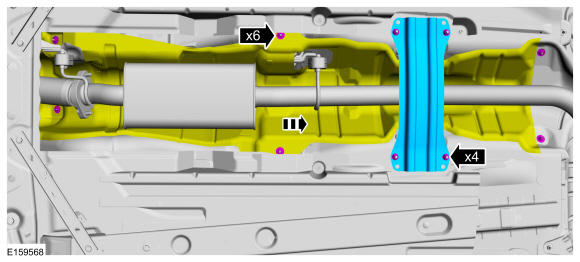

  • Remove the nuts and position aside the exhaust heat shield.
  • Remove the nuts and the center support brace.

Courtesy of FORD MOTOR COMPANY

• 12.

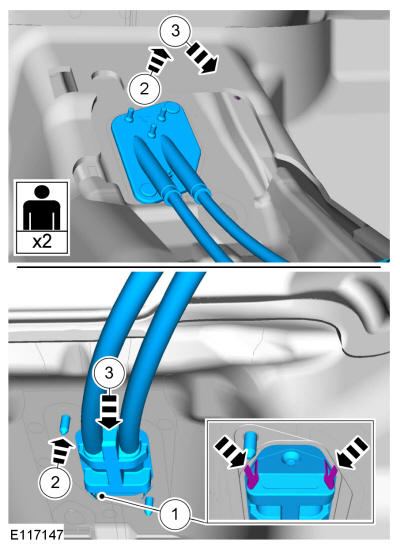

  Remove the nuts.

Courtesy of FORD MOTOR COMPANY

• 13.

  Remove the floor console. Refer to: Floor Console .

• 14.


  • Disconnect the gearshift cable ends from the ball studs of the gearshift lever.
  • Slide the lock sleeve and remove the gearshift cables from the gearshift lever base.

Courtesy of FORD MOTOR COMPANY

• 15.

  Release the retainers and remove gearshift cable mounting bracket.

Courtesy of FORD MOTOR COMPANY
