Component Location
WARNING: This page is about a different variant/trim than selected.

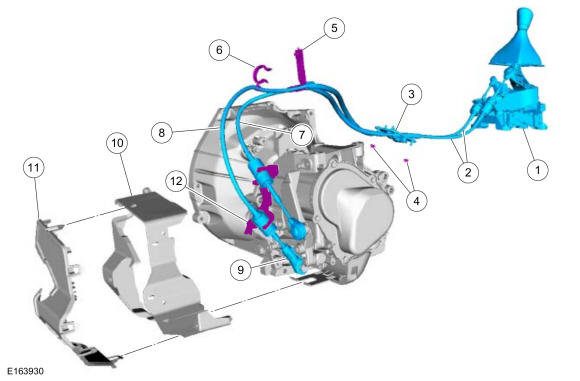

IB5
| Item | Part Number | Description |
|---|---|---|
| 1 | 7C453 | Gearshift lever |
| 2 | 7E395 | Gearshift cable assembly |
| 3 | - | Gearshift cables grommet (part of 7E395) |
| 4 | W706131 | Gearshift cables grommet nuts |
| 5 | 7C281 | Gearshift cable clip (1.6L TiVCT) |
| 5 | - | Gearshift cable clip (1.0L part of 7E395) |
| 6 | W709047 | Gearshift cable clip |
| 7 | - | Shift cable (part of 7E395) |
| 8 | - | Select cable (part of 7E395) |
| 9 | - | Select cable adjuster (part of 7E395) |
| 10 | 7220 | Gearshift cables shroud |
| 11 | 7222 | Gearshift cables cover |
| 12 | 7474 | Gearshift cable bracket |

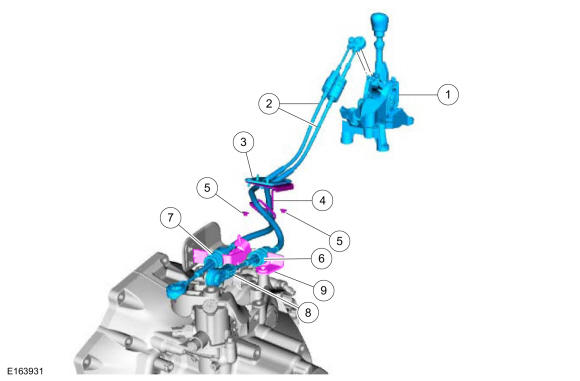

B6
| Item | Part Number | Description |
|---|---|---|
| 1 | 7C453 | Gearshift lever |
| 2 | 7E395 | Gearshift cable assembly |
| 3 | - | Gearshift cables grommet (part of 7E395) |
| 4 | 7C281 | Gearshift cable clip |
| 5 | W706131 | Gearshift cables grommet nuts |
| 6 | - | Select cable (part of 7E395) |
| 7 | - | Shift cable (part of 7E395) |
| 8 | - | Select cable adjuster (part of 7E395) |
| 9 | 7474 | Gearshift cable bracket |
