Selector Mechanism: Removal

WARNING: This page is about a different variant/trim than selected.

1.

Remove the battery tray. Refer to: Battery Tray - 1.0L EcoBoost (90kW/120PS)/1.6L EcoBoost (132kW/180PS) - Sigma .

2.

Remove the air cleaner. Refer to: Air Cleaner .

3.
- 1.

  Detach the retainers and position aside the wiring harness.
- 2.

  Remove the nuts and remove the battery tray support bracket from the transmission support insulator.
- 3.

  Detach the retainers.
- 4.

  Slide and position aside the wiring harness.

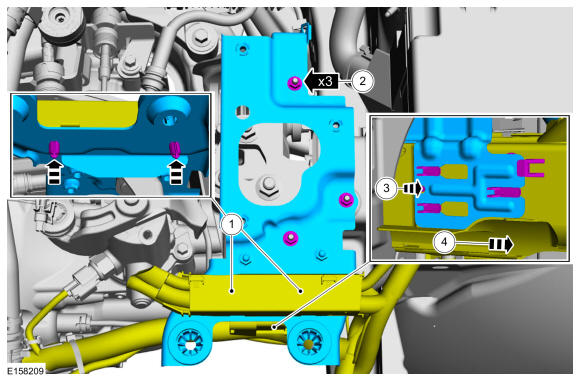

GFD140755

Courtesy of FORD MOTOR COMPANY

4.
- Disconnect the gearshift cable ends from the ball studs of the gearshift lever.
- Slide the lock sleeve and remove the gearshift cables from the gearshift lever base.

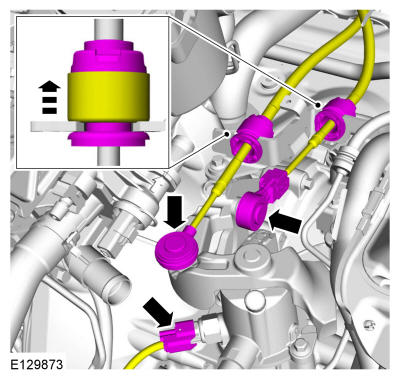

GFD140756

Courtesy of FORD MOTOR COMPANY

5.
- 1.

  Position the selector mechanism in N position.
- 2.

  Remove the selector mechanism bolts.

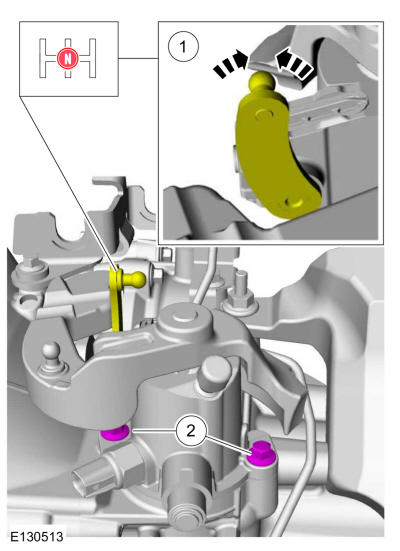

GFD140757

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Make sure that no components catch.

Remove the selector mechanism.

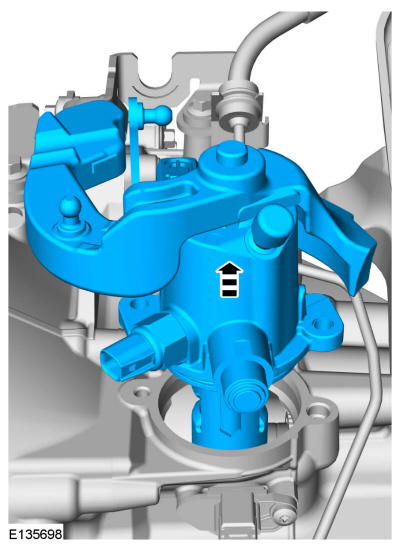

GFD140758

Courtesy of FORD MOTOR COMPANY
