Selector Mechanism: Installation

WARNING: This page is about a different variant/trim than selected.

1.

NOTE: The O-ring seal is to be reused unless damaged.

Lubricate and install the O-ring.

Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

GFD140739

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Make sure that no components catch.
- Make sure that the shift forks are in the N position.
- Install the selector mechanism.

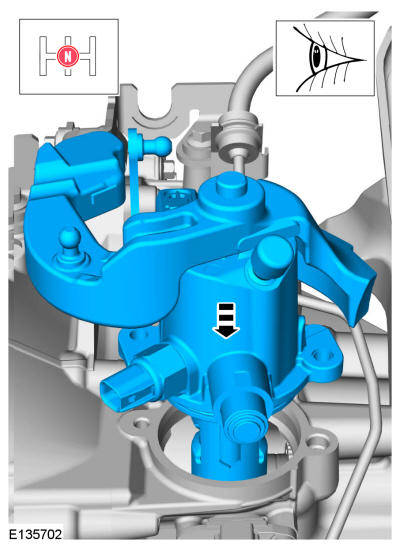

GFD140759

Courtesy of FORD MOTOR COMPANY

3.

Connect the electrical connector and install the bolts.
Torque: 18 lb.ft (24 Nm)

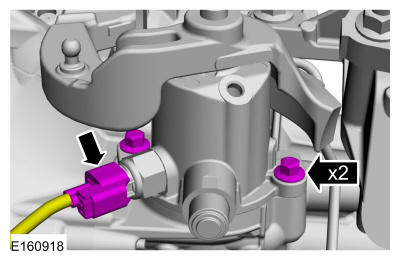

GFD140760

Courtesy of FORD MOTOR COMPANY

4.

Refer to: Gearshift Cable Adjustment - 6-Speed Manual Transmission - B6 .

5.
- 1.

  Slide and install the wiring harness.
- 2.

  Install the retainers.
- 3.

  Install the battery tray support bracket and nuts.
- 4.

  Install the wiring harness.

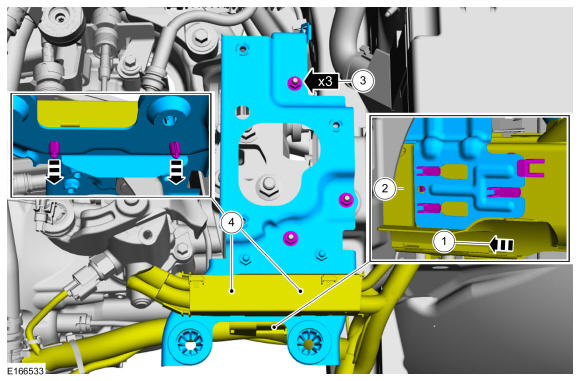

GFD140761

Courtesy of FORD MOTOR COMPANY

6.

Install the battery tray. Refer to: Battery Tray - 1.0L EcoBoost (90kW/120PS)/1.6L EcoBoost (132kW/180PS) - Sigma .

7.

Install the battery. Refer to: Battery .

8.

Install the air cleaner. Refer to: Air Cleaner .
