Halfshaft Seal LH: Removal

WARNING: This page is about a different variant/trim than selected.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

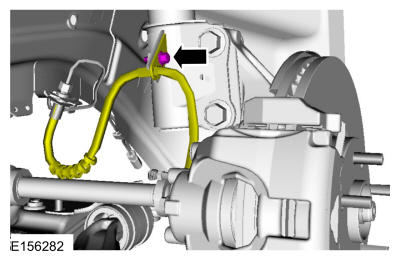

Remove the bolt and position aside the LH brake hose.

GFD140743

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

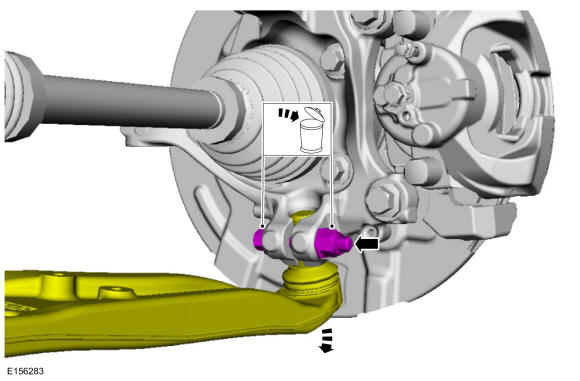

Remove and discard the wheel knuckle bolt and the nut. Disconnect the lower arm and position aside the wheel knuckle.

GFD140744

Courtesy of FORD MOTOR COMPANY

4.

If equipped. Remove the retainers and the underbody shield.

GFD139770

Courtesy of FORD MOTOR COMPANY

5.

Remove the halfshaft from the transmission and position it aside.

GFD140300

Courtesy of FORD MOTOR COMPANY

6.

Remove and discard the halfshaft retaining circlip.

GFD140745

Courtesy of FORD MOTOR COMPANY

7.

Remove and discard the halfshaft seal.

GFD140746
