Transmission Fluid Level Check

Materials

Check

• 1.

  With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 2.

  If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

• 3.

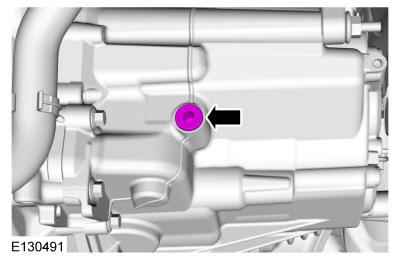

  Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

• 4.

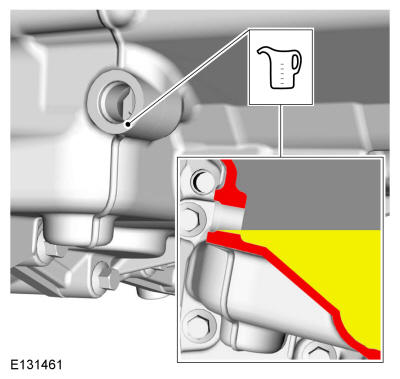

  Add transmission fluid as necessary.

  Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY

• 5.

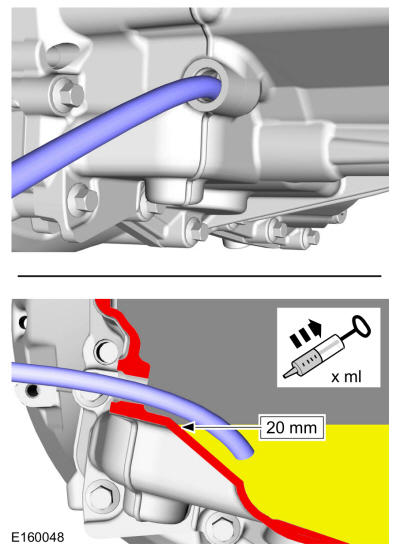

  Remove enough fluid to be 01 in (20 mm) below fill hole.

Courtesy of FORD MOTOR COMPANY

• 6.

  Install the fill plug.

  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

  If equipped. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
