Transmission Draining and Filling

WARNING: This page is about a different variant/trim than selected.

Materials

Name	Specification
Motorcraft ® Dual Clutch Transmission FluidXT-11-QDC	WSS-M2C200-D2

Draining

1.

With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

If equipped. Remove the retainers and the underbody shield.

GFD139770

Courtesy of FORD MOTOR COMPANY

3.

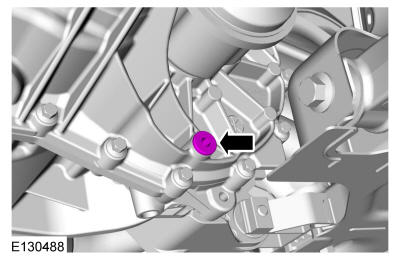

Remove the drain plug and drain the transmission fluid.

GFD140697

Courtesy of FORD MOTOR COMPANY

4.

Install the drain plug.
Torque: 30 lb.ft (40 Nm)

GFD140697

Courtesy of FORD MOTOR COMPANY

Filling

1.

Remove the fill plug.

GFD140694

Courtesy of FORD MOTOR COMPANY

2.

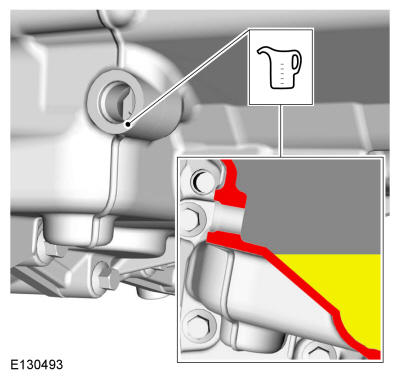

Fill the transmission.
Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

GFD140698

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Remove enough fluid to be 1in (20mm) below fill hole.

Remove enough fluid to be 1 in (20 mm) below fill hole.

GFD140696

Courtesy of FORD MOTOR COMPANY

4.

Install the fill plug.
Torque: 30 lb.ft (40 Nm)

GFD140694

Courtesy of FORD MOTOR COMPANY

5.

If equipped. Install the underbody shield.

GFD139770

Courtesy of FORD MOTOR COMPANY
